Indoor air pollution: an international health problem!
The quality of the indoor air we breathe is important for our health and well-being. The less dust and fewer allergens, micro-organisms and chemical contaminants we breathe in, the lower the risk of becoming unwell.
According to recent studies by the leading institutions WHO (World Health Organisation) and EPA (US Environmental Protection Agency), the indoor air in our living, working and mobility areas is often 2 to 5 and even up to 100 times more polluted than the air outside due to the biological and chemical load!
The problem is compounded by today’s method of energy-efficient construction. As a result, inadequate ventilation often causes undisturbed propagation of bacteria, viruses, house dust mites, mould, fine dust and pollen in our indoor spaces.
Given the increasing impact due to fine dust and pollutants, clean indoor air can no longer be taken for granted. The quality of breathing air has deteriorated markedly in recent years. Everywhere in our indoor spaces, bacteria, viruses, dust mites, mould, fine dust and pollen can spread undisturbed.
Reason enough to pay full attention to indoor air quality!
CA-505 Smart intelligent HEPA ioniser air purifier
Suitable for rooms up to 50m² / 125m³ / 538ft²
360° Airflow air purifier ensures clean breathing air
The powerful 360° air circulation system of the Clean Air Optima® intelligent HEPA ioniser air purifier CA-505 Smart ensures the distribution of pure breathing air to every corner of the room and makes this compact air purifier a "power unit" particularly suitable for people with respiratory complaints, and applicable for home use in living rooms and bedrooms, as well as for offices, showrooms, treatment rooms, etc.
Health starts with clean air!
The CA-505 Smart intelligent HEPA ioniser air purifier features powerful filters with a wide operating range against particles, molecules, gaseous pollutants and odours. By applying six up-to-date filter technologies, the CA-505 Smart air purifier creates clean, fresh breathing air and offers protection against:
• Dust/fine dust
• Bird dust
• Bacteria and viruses
• Cigarette/tobacco smoke
• Fine particles (PM2.5)
• Hair and dander
• House dust mites
• Mould spores
With its stylish compact design, neutral colour scheme and ultra-quiet operation, the CA-505 Smart air purifier can be used in any interior. The wide and effective filter spectrum makes the CA-505 Smart air purifier especially suitable for people suffering from asthma, bronchitis, COPD, allergies and a weak immune system.
Clean Air Optima® Air Purifier
360° Airflow filtration system
Effective air cleaning in 6 steps:
1. 360° vertical suction
Suction of polluted indoor air by the low-noise and energy-efficient, 360° powerful DC fan.
The pre-filter captures larger dust particles and other pollutants, such as pet hair and dander.
3. TRUE HEPA (H13) filter
The TRUE HEPA (H13) filter purifies 99.97% of all suspended matter down to 0.3 micrometres (0.3 µm) from the air. The HEPA filter is the most effective air filter for removing: dust, particulate matter, allergens and other solid particles.
4. Active carbon filter
The active carbon filter effectively filters gases, chemicals, cigarette smoke, volatile organic compounds (VOC) and odours from indoor air.
5. Ioniser ozone-free DIN EN 60335-2-65
Two ionisers with a total capacity of more than 3,000,000 negative ions / cm³ that are dispersed throughout the room, thereby neutralising harmful substances and odours. The negative ions attach themselves to dust particles, micro-organisms and other undesired substances in the air and bind them together. In this way, the particles become heavier than the air and fall down or are filtered from the air by the air purifier.
6. Cleaned air
Clean, healthy breathing air flows from the top of the air purifier into the indoor space.
Effectiveness Clean Air Optima® air purifiers
with CADR certification
The Clean Air Delivery Rate (CADR) effectiveness criterion determined in vendor-independent laboratory tests puts the Clean Air Optima® air purifier CA-505 Smart at the top of indoor air quality improvement systems. The high-performance filter system extracts micro-fine particles down to 0.3 micrometres (0.3 µm) from the air with 99.97% efficiency.
The CADR value indicates how effectively the air cleaner filters particles such as smoke, dust and pollen from indoor air. This is measured by independent bodies in standard rooms up to 20.4m², with measured values ranging from 10 to 450 cubic feet of particle-free air per minute.
The CADR value of the intelligent HEPA ioniser air purifier CA-505 Smart is 250 M³ of particle-free air/hour.
The intelligent high-end Clean Air Optima® air purifier CA-505 Smart assures the user of healthy, clean breathing air in the indoor environment.
Intelligent Particle Sensor and
digital monitor air purifier
A smart sensor measures and controls the air quality fully automatically. The fan automatically anticipates with 4 speeds the indoor air load of solid particles measured by the sensor.

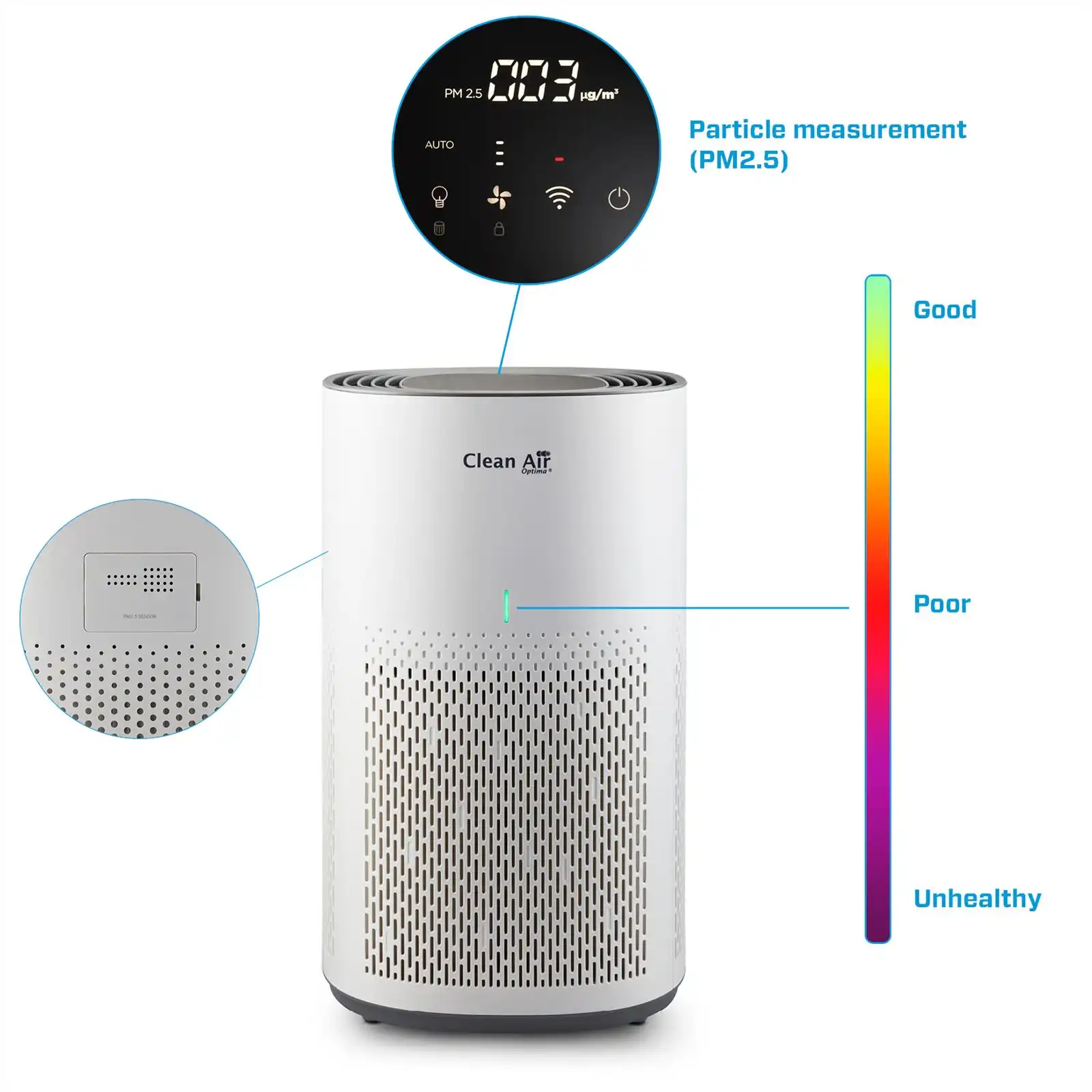

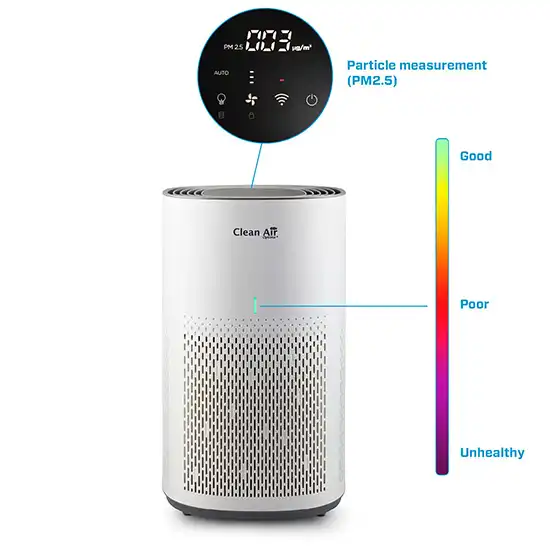

The digital monitor of the air purifier CA-505 Smart provides automatic and precise feedback on the current air quality by measuring the PM2.5 level in the indoor area.
Particle measurement/Fine dust/PM2.5
|Particle measurement (PM 2.5)
|| Green - Good
|| Yellow - Moderate
|| Orange - Very moderate
||Purple - Very poor
|| Maroon / brown - Unhealthy
Fine dust is a collective term for air pollution with particles small enough to be inhaled. Fine dust in the air can have harmful effects on health. In 1999/2008, the European Union laid down limits for PM10 fine dust (particulate matter with a particle size of approx. 10 microns) and PM2.5 (particulate matter with a particle size of approx. 2.5 microns).
The main source of fine dust, especially PM10, in the indoor environment is tobacco smoke. In addition, fine dust such as PM2.5 comes from open fireplaces, from baking and frying and vacuuming.
The brushless DC motor of the Clean Air Optima® air purifier CA-505 Smart is extremely quiet, energy-efficient and provides high-precision adjustment by controlling the air speed at your choice of 4 fan levels. Moreover, the BLDC motor in this unique air purifier from Clean Air Optima® has a much longer lifespan compared to a standard air purifier with an AC motor.
Ultra-quiet sleep mode programming
The sleep mode programming of the CA-505 Smart intelligent air purifier dims the display and switches the fan speed to an ultra-quiet speed for a pleasant night's sleep.
Compact design and easy operation
with the Clean Air Optima® App
Compact design fits any interior
Use and maintenance
With its compact, beautifully styled design and neutral colour scheme, the unique Clean Air Optima® HEPA ioniser air purifier CA-505 Smart can fit any interior.
The clearly arranged digital control panel on the top of the air purifier features five touch buttons that makes selecting the desired settings simple.
The setting options of the air purifier CA-505 Smart:
• Switching on and off
• Setting auto or sleep mode 10dB(A)
• Fan speed in four modes
• Timer for switch-off time 1 , 4 or 8 hours
• Week programming and switch-on and switch-off time 0 - 24 hours (adjustable via the App)
The functions are adjustable via the digital control panel and/or the Clean Air Optima® App.
Exterior cleaning and Intelligent Particle Sensor™
Cleaning exterior of the air cleaner:
1. Switch off the device and pull the plug out of the socket.
2. Use a soft damp cloth to remove dust and dirt from the device.
3. Make sure that no water gets into the device.
Cleaning Intelligent Particle Sensor™
Clean the air quality sensor every 6 to 8 weeks.
If the PM2.5 value changes, dust on the sensor lens may be cause
Clean the sensor lens with a cotton swab:
1. Remove the cover of the sensor.
2. Clean the sensor lens with a cotton swab and water as instructed in the manual. Then dry the lens with a clean cotton swab.
3. Place the cover of the sensor back.
4. Do not wipe the sensor lens with alcohol or other organic solvent.
If the humidity in the room is very high, there is a risk of condensation on the air quality sensor. This may cause the air quality indicator (Digital Display - Particle Measurement) to incorrectly indicate that the air quality is poor (which should not be the case). In this case, we recommend that you clean the air quality sensor or do not use the air purifier in automatic mode.
Cleaning and replacing filters
Replacing the composite combination filter:
The Clean Air Optima® intelligent air purifier CA-505 Smart is equipped with a filter life monitoring mechanism that indicates when the combination filter has to be replaced after 1400 working hours. To indicate that the combination filter (Pre-filter, TRUE HEPA (H13) filter, active carbon filter) needs to be replaced, the indicator light of the air purifier starts flashing. Press the filter change button after the filter has been changed. This resets the change filter timer. The display lights up for 1 second, then the device goes into standby mode. Pressing the power button turns the device back on.
Depending on use, the combination filter should be replaced every 4-5 months.
Signs of used-up filters: increased noise level, decreased airflow, clogged filter and increased odour. If the HEPA filter changes colour, from white to grey or black, the filter should be replaced with a new one. If the HEPA filter remains white, it does NOT need to be replaced.
For optimal effect, the permanent pre-filter in the Clean Air Optima® intelligent air purifier CA-505 Smart and the combination filter can be cleaned monthly in between using a soft brush or your hoover (see air purifier CA-505 Smart manual).
Never wet or rinse the combination filter with water.
