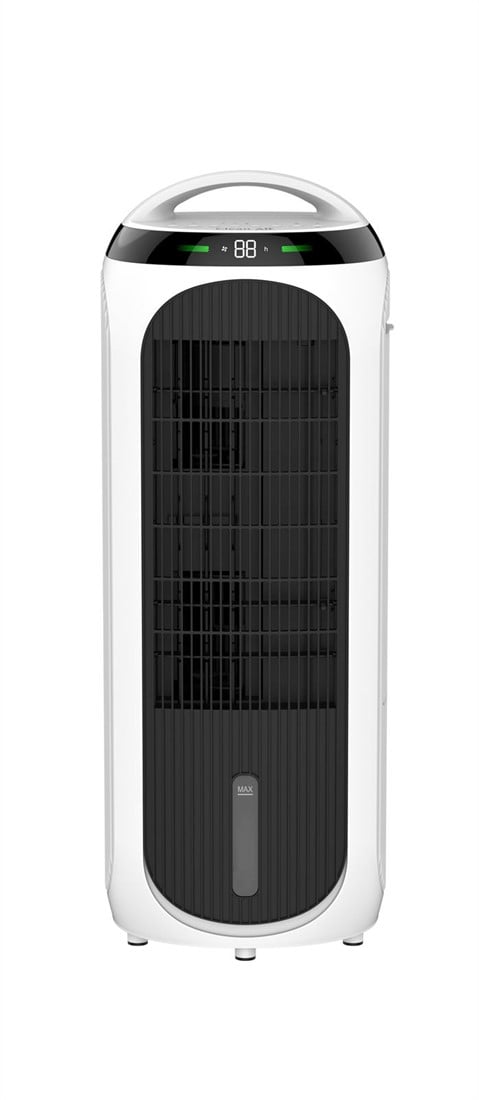

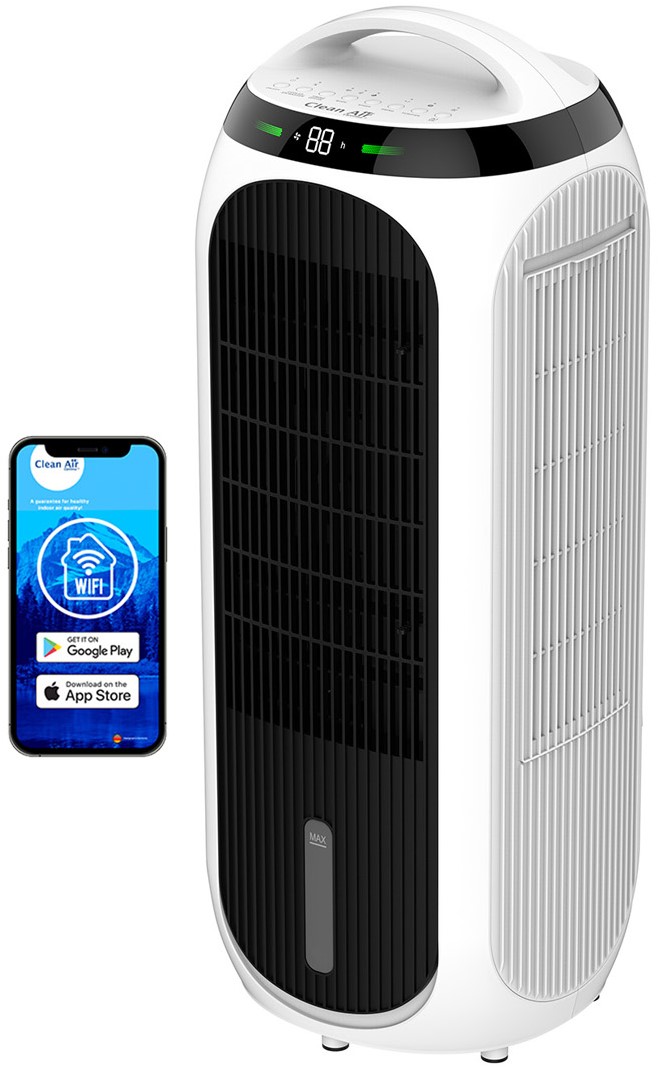

4in1 design air cooler, air purifier, humidifier and fan CA-106 Smart
Suitable for small and large spaces up to 65m² / 160m³ / 699ft²
Multifunctional for an optimum indoor climate during all seasons
The Clean Air Optima® 4in1 design air cooler CA-106 Smart is the perfect solution for comfortable air cooling, air purifying, air humidifying and creating a refreshing breeze through the separately switchable fan function with 3 selectable fan levels. The 4in1 design air cooler, air purifier, humidifier and fan CA-106 Smart is characterised by its flexible setting options for:
- Cooling air during hot days by switching on the air cooler function
- Purifying air with or without air cooler function using 4 modern filter technologies
- Humidifying air during cold winter days with or without air purifier function
- Fan during hot days with or without air cooler or air purifier function
Air cooler for cooling on warm days!

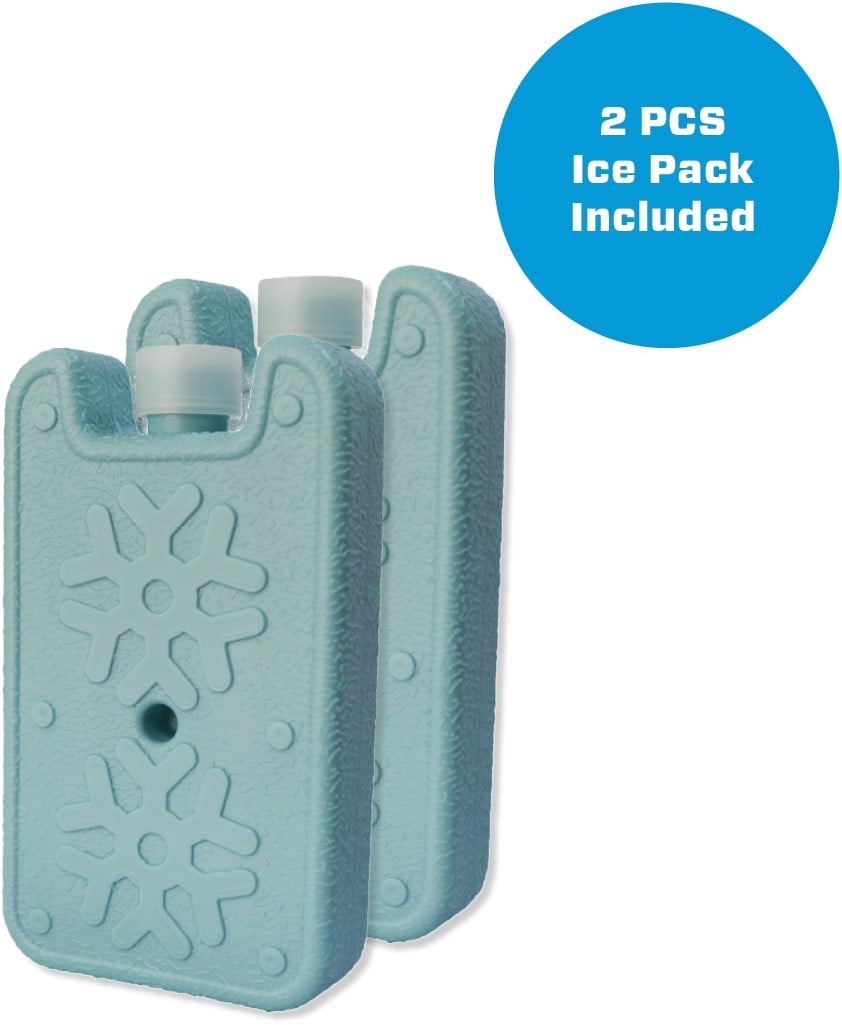

The Clean Air Optima® 4in1 design air cooler CA-106 Smart provides cooling in the indoor area by means of a powerful air flow and evaporation of (cool) water in the ambient air. This is based on the principle of natural evaporative cooling of ice or cold water added to the water tank to cool warm (indoor) air without the use of chemical refrigerants. Also, the Clean Air Optima® 4in1 design air cooler CA-106 Smart does not require an air outlet hose as with an air conditioner, and is an energy- and cost-saving alternative to an air conditioning system with a consumption of only 65 watts max.
Natural evaporative cooling

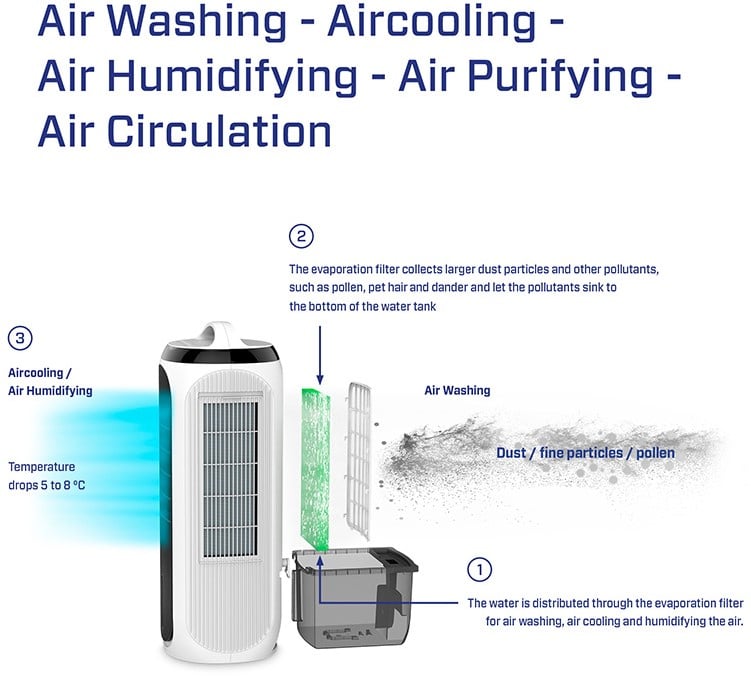

You are undoubtedly familiar with this: when you blow on moist skin, you immediately feel a cooling effect as the evaporation process extracts heat. The evaporation process of the CA-106 Smart air cooler is similar: At the back of the air cooler you will find the evaporative filter with its honeycomb structure. The evaporator filter becomes saturated with water when you switch on the air cooler function. Warm air is passed from the back of the air cooler through the wet (cool) evaporative filter and cools by evaporation. The cooled air is then blown into the interior by the low-noise fan.
Air cooler capacity CA-106 Smart - 240 m³/hr
Air cooler CA-106 Smart: a four-season system
The 4in1 design air cooler CA-106 Smart combines air cooling with air purifying. When you don't need the air cooler function, the air purifier function of the air cooler ensures an optimal indoor climate all year round. With its air purification function, the multifunctional Clean Air Optima® design air cooler and air purifier CA-106 Smart frees indoor air from allergens, mould spores, annoying animal hair, pollen, (fine) dust and odours all year round.

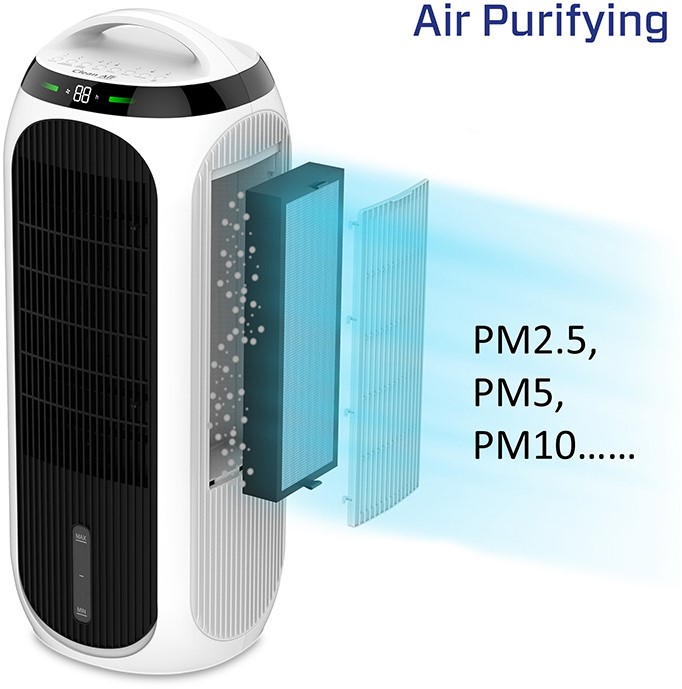

Air purifier with four filter technologies
1. Pre-filter
The pre-filter captures large dust particles such as: lint, hair and pet dander.
2. Evaporative filter
The evaporative filter has a honeycomb structure for intensive air humidification and air purification. The extracted air is cleaned immediately in a natural way, similar to a rainstorm or waterfall, and simultaneously purified of particles down to 10 microns. The particles are collected and bound in the water tank. This frees the air from dust, pollen and particle-bound odours, which can thus no longer be discharged into the indoor air.
3. TRUE HEPA H13 filter with nanosilver coating
The TRUE HEPA filter Purifies 99.97% of all suspended matter as small as 0.3 microns (0.3 µm) from the air. A HEPA filter is the most effective air filter for removing:
• (fine) dust, cigarette smoke, pollen
• allergens
• all other solid particles
The antibacterial layer of the nano silver coating on the filter eliminates bacteria and mould.
4. Ionizer
Capacity > 3,000,000 negative ions / cm³ that are dispersed throughout the room, thus neutralising harmful substances and odours. The ionizer produces negative ions to clean the indoor air and enrich it with active oxygen. This neutralises unpleasant odours and purifies pollutants from the air. Negative ions also have a strong anti-static action.
Intelligent Particle Sensor and digital monitor air purifier
A smart sensor measures and controls the air quality fully automatically. The fan automatically anticipates with 3 speeds the indoor air load of solid particles measured by the sensor.

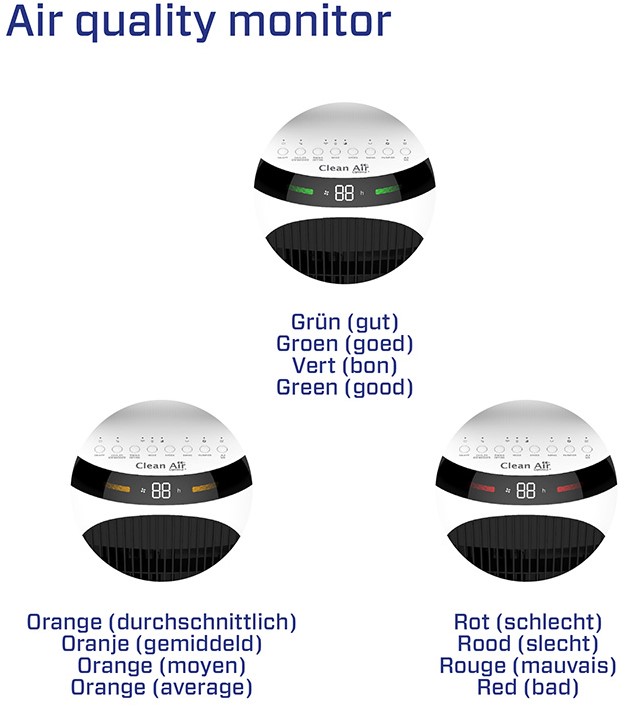

The 4in1 design air cooler CA-106 Smart provides automatic and precise feedback on the current air quality by measuring, via the digital colour monitor, the PM2.5 level in the indoor area.
Particle measurement (PM 2.5) Air quality:
<35 Green - Good
35-100 Orange - Moderate
>101-150 Red - Poor
Particle measurement/Particulate matter/PM2.5
Particulate matter is a collective term for air pollution with particles small enough to be inhaled. Particulate matter in the air can have harmful effects on health. In 1999 / 2008, the European Union set limits for particulate matter PM10 and PM2.5 (PM stands for: Particulate Matter: PM10 with a particle size of about 10 micrometres or 10 microns, and PM2.5 with a particle size of about 2.5 micrometres or 2.5 microns).
The main source of particulate matter, especially PM10, in the indoor environment is tobacco smoke. In addition, particulate matter such as PM2.5 comes from the fireplace, baking, frying and vacuuming.
Effectiveness of Clean Air Optima® air purifiers
with CADR certification
The Clean Air Delivery Rate (CADR) effectiveness criterion determined in vendor-independent laboratory tests puts the Clean Air Optima® 4in1 air cooler CA-106 Smart at the top of indoor air quality improvement systems. The high-performance filter system of the CA-106 Smart filters micro-fine particles as small as 0.3 micrometers (0.3 µm) from the air with 99.97% efficiency.
The CADR value indicates how effectively the air purifier filters particles such as smoke, dust and pollen from indoor air. This is measured by independent bodies in standard rooms up to 20.4m², with measured values ranging from 10 to 450 cubic feet of particle-free air per minute.
The CADR value of the Clean Air Optima® 4in1 air cooler CA-106 Smart is 180 m³ of particle-free air/hour..
The Clean Air Optima® 4in1 air cooler CA-106 Smart assures the user of healthy, clean breathing air in the indoor environment.
Filter spectrum
The air cooler CA-106 Smart features powerful filters with a wide operating spectrum against particles, molecules, gaseous pollutants and odours. By applying four modern filter technologies, the air cooler CA-106 Smart realises clean, fresh breathing air and offers protection against:
• Dust/particulate matter
• Bird dust
• Bacteria and viruses (SARS-CoV-2 / COVID-19)
• Cigarette/tobacco smoke
• Odours
• Gases
• Fine particles (PM2.5)
• TVOCs
• Hair and dander
• House dust mite
• Mould spores
• Pollen
Humidifier in winter
Healthy, fresh and optimally humidified indoor air prevents irritated airways, dry skin and drying out of valuable interior items. In periods of low relative humidity, the Clean Air Optima® 4in1 design air cooler CA-106 Smart can also be used as a humidifier, realising optimal humidity in indoor spaces through natural cold evaporation.
Humidification capacity CA-106 Smart / min. 250 ml/h - max. 600 ml/h
Fan with dynamic airflow
With the air cooler function switched off, the 4in1 design air cooler CA-106 Smart acts as a fan with a cooling breeze in summer. The design air cooler CA-106 Smart features an advanced fan system with a vertical rotor and three selectable speeds, setting options for normal or natural airflow and sleep mode.
Air speed up to 8 metres/second

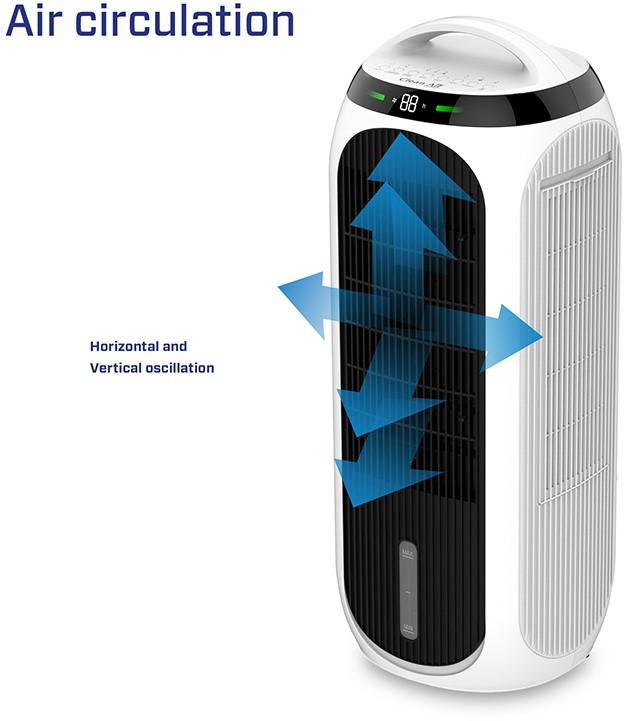

Air cooler and fan with automatic horizontal oscillation
Air cooler - fan air circulation horizontal: automatic, vertical: manual. The design air cooler CA-106 Smart ensures an optimal distribution of airflow in the room and effective cooling.
Easy to fill water tank

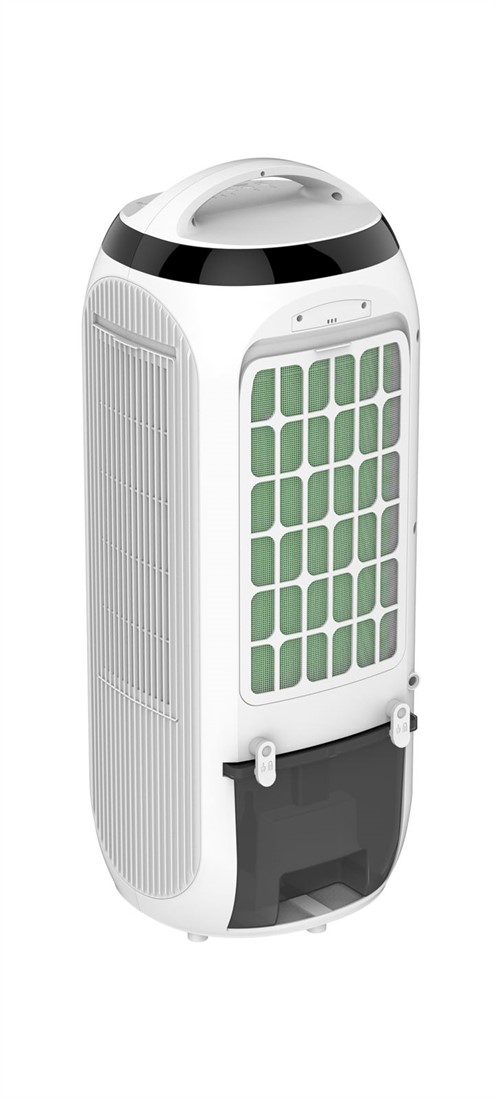

The water tank can be easily and quickly extended from the back of the Clean Air Optima® 4in1 design air cooler CA-106 Smart for filling with tap water under the tap, but can also be refilled from the top inside the unit itself.
The design air cooler CA-106 Smart has a large water tank with a capacity of 5.5 litres.
Air cooler in compact design with easy operation
Practical handle
The Clean Air Optima® 4in1 design air cooler CA-106 Smart has a practical handle that makes it easy to move the air cooler from one room to another.

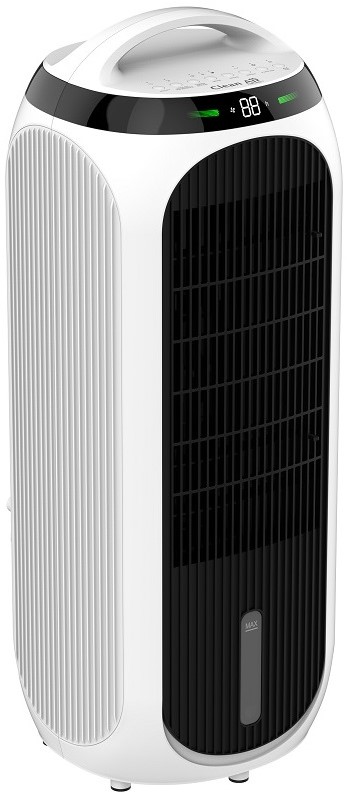

Compact design air cooler fits any interior
The compact and beautifully styled design of the air cooler and its neutral colour scheme make the unique Clean Air Optima® 4in1 design air cooler CA-106 Smart fit any interior.

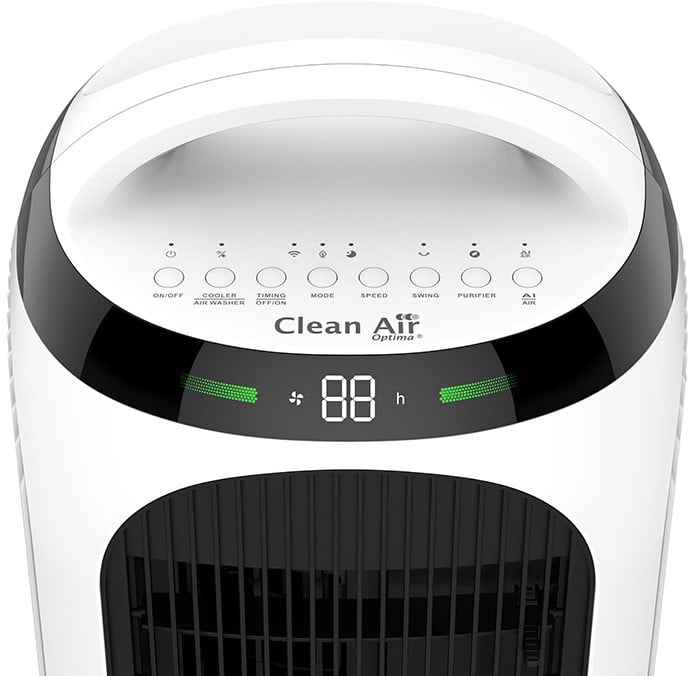

The clearly set out digital control panel on top of the air cooler CA-106 Smart features eight touch keys for easy selection of the desired settings.
Setting options of the design air cooler CA-106 Smart
- ON/OFF: for switching the air cooler/air purifier/humidifier and fan on and off
- Cooler/Air Washer: air cooler/humidifier on, air cooler/humidifier off
- Timer ON / Timer OFF: 0-24 hour timer function with adjustable switch-on and switch-off time
- Mode: for setting the desired programme: normal airflow, natural airflow, sleep mode
- Speed: fan speed 1, 2 or 3
- Swing: setting oscillation function for air cooler - fan
- Purifier: switching the air purifier on and off
- AI/AIR: switching on/off the air quality sensor for automatic air purification
- 0-24 hour weekly programming: switch-on and switch-off time (adjustable via App)

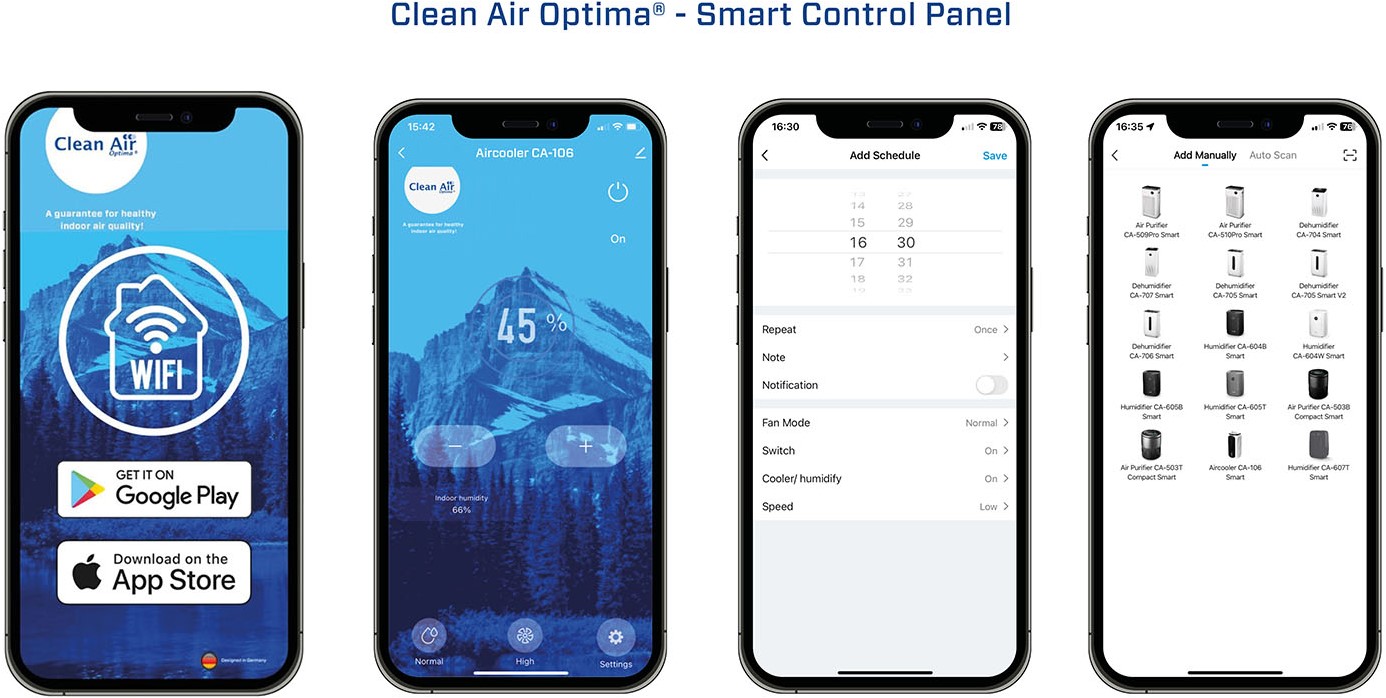

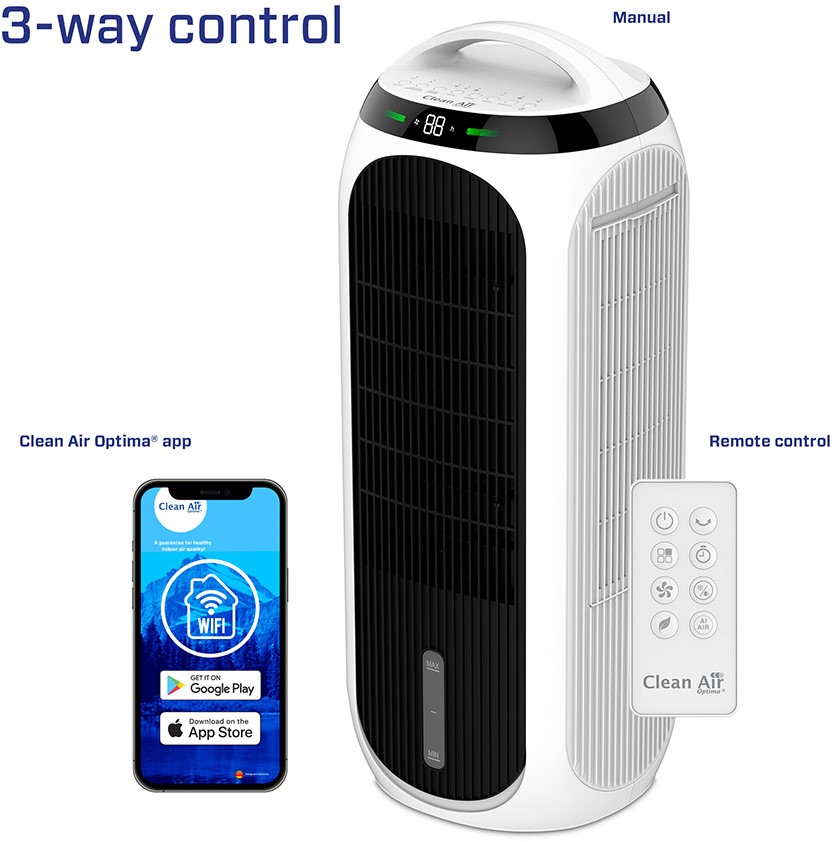

These functions can be set via the digital control panel, the remote control and/or the Clean Air Optima® App.
