Risks due to dry and poor air quality in indoor spaces
Especially during cold seasons, relative humidity often falls below a relative humidity of around 45 - 55% recommended by the medical profession for living and working spaces. Humidity in homes, offices and buildings is often too low during the summer because of cooling by air conditioning systems.
Dry air has a negative effect on human and animal well-being and can cause respiratory illness and skin complaints during prolonged periods of very dry indoor air. Drying out can also be very harmful for furniture, parquet floors, antiques and plants.
Highly effective humidification achieved by the CA-807 air washer serves to prevent dry heating air and acts preventively against:
• Itchy eyes, irritated respiratory tract and dry skin
• Colds and tickling coughs due to parched mucous membranes
• Dry throat and nasal congestion
• Dry skin and chapped lips
• Cracks in wooden furniture, parquet floors and musical instruments
At the same time, the CA-807 air washer frees indoor air from:
• Old tobacco smoke
• Odours
• House dust, animal hair and pollen

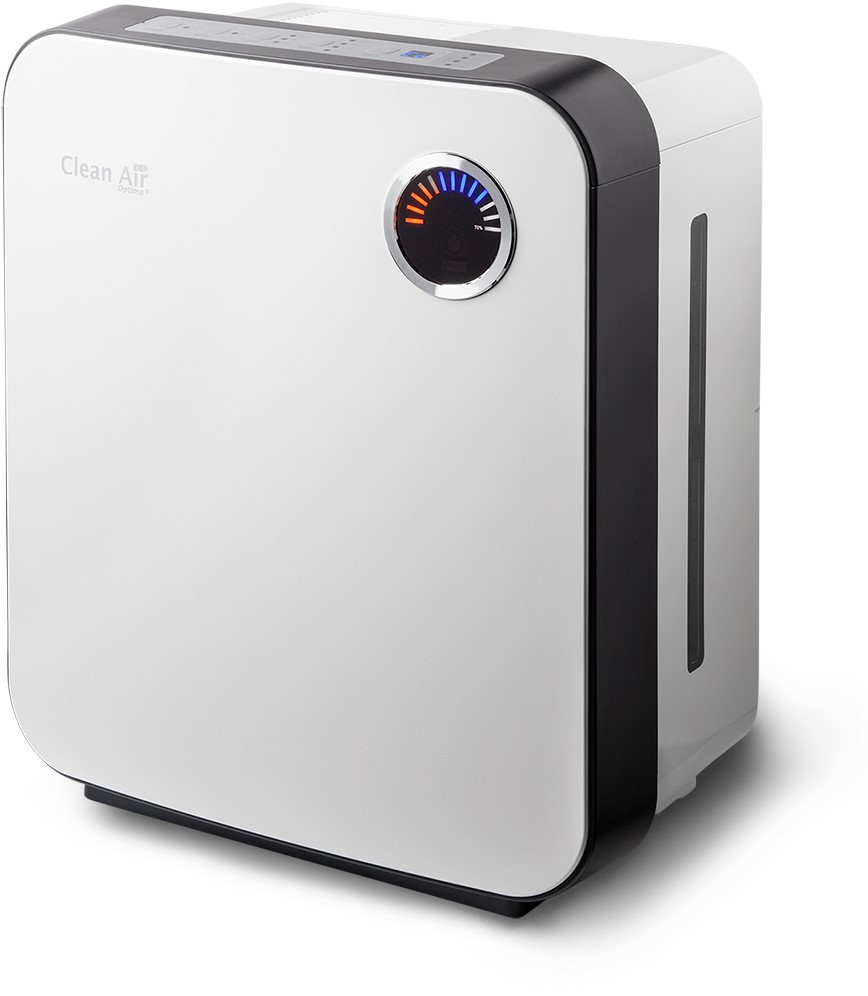

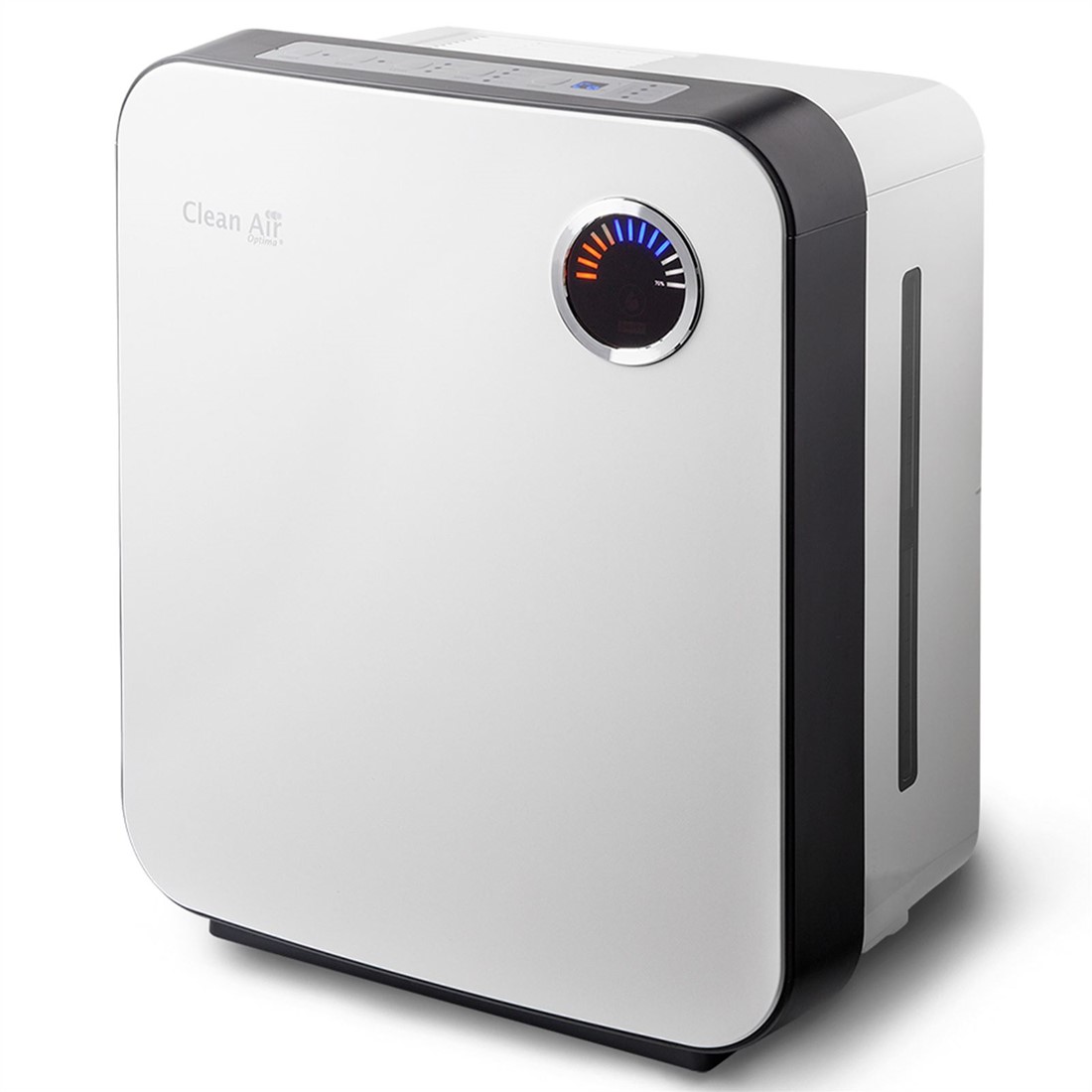

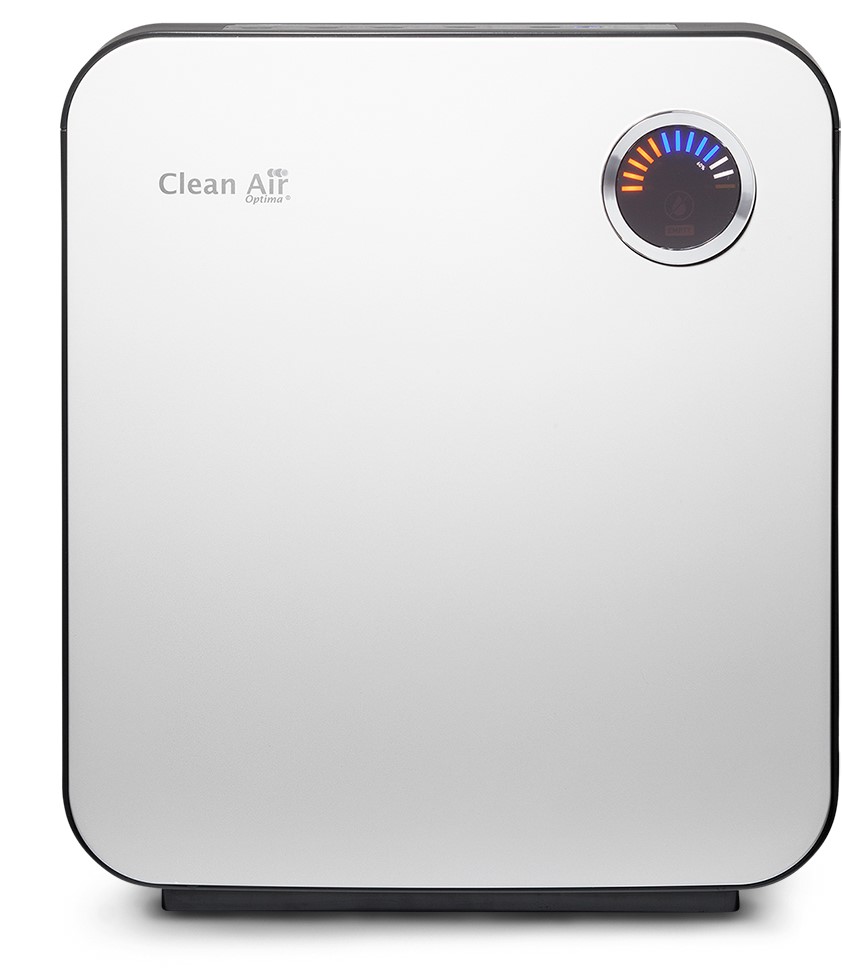

Air Washer CA-807
2in1: Humidifier and Air Purifier
Suitable for small and large rooms up to 70m² / 175m³ / 750ft²
Unique air washer system for optimum indoor climate
The Clean Air Optima® CA-807 air washer system offers simultaneous effective humidification and air purifying in your indoor space. The combination of four proven technologies, cold evaporation for humidification, air washing for purifying air, antibacterial water filter and activated carbon pre-filter, bring about a fresh and healthy indoor climate.
The CA-807 air washer is equipped with a humidistat which controls humidification automatically and has settings for day operation, whisper quiet (night) operation with dimming displays in the sleep mode. Its particularly quiet operation makes this unique system suitable for use in the bedroom or children's room as well as in offices, treatment rooms and all other areas where equipment is required to operate quietly.
Air washing provides powerful humidification
and effective air purification

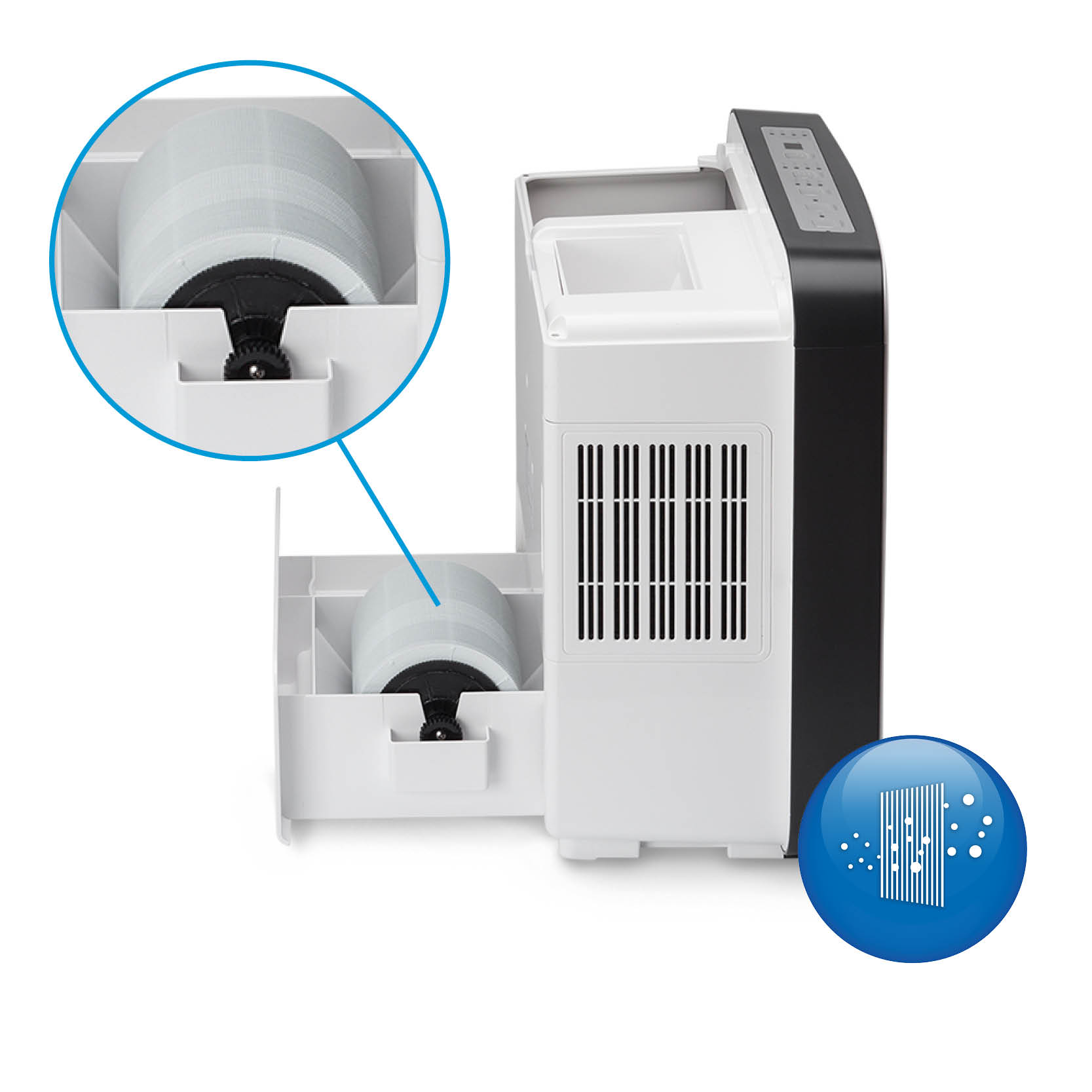

The CA-807 air washer evaporates the water by means of a rotor with humidifying discs: this rotor rotates slowly like a wheel through the water basin at the bottom. When the part of the discs that has passed through the water surfaces again, the airflow from the fan is blown over it, causing the water in the humidifying discs to evaporate. Dust, pollen and other odour-generating and polluting particles remain trapped in the humidifying discs and when this part of discs rotates through the water again, the pollutants are discharged to the water and sink to the bottom of the removable and easy-to-clean water basin. Consequently, the absorbed pollutants can no longer be emitted into the indoor air.
Clean Air Optima® air washer CA-807
hybrid system operating procedure

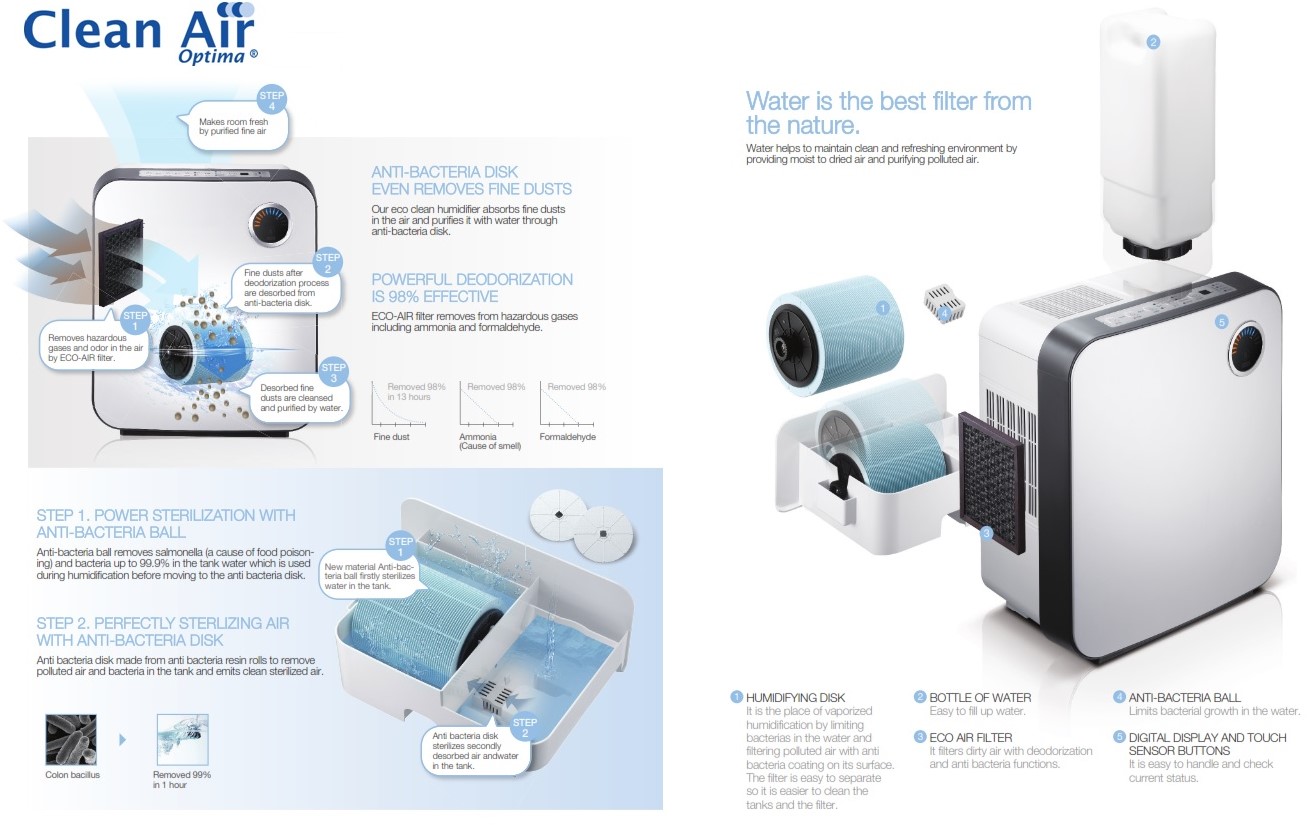

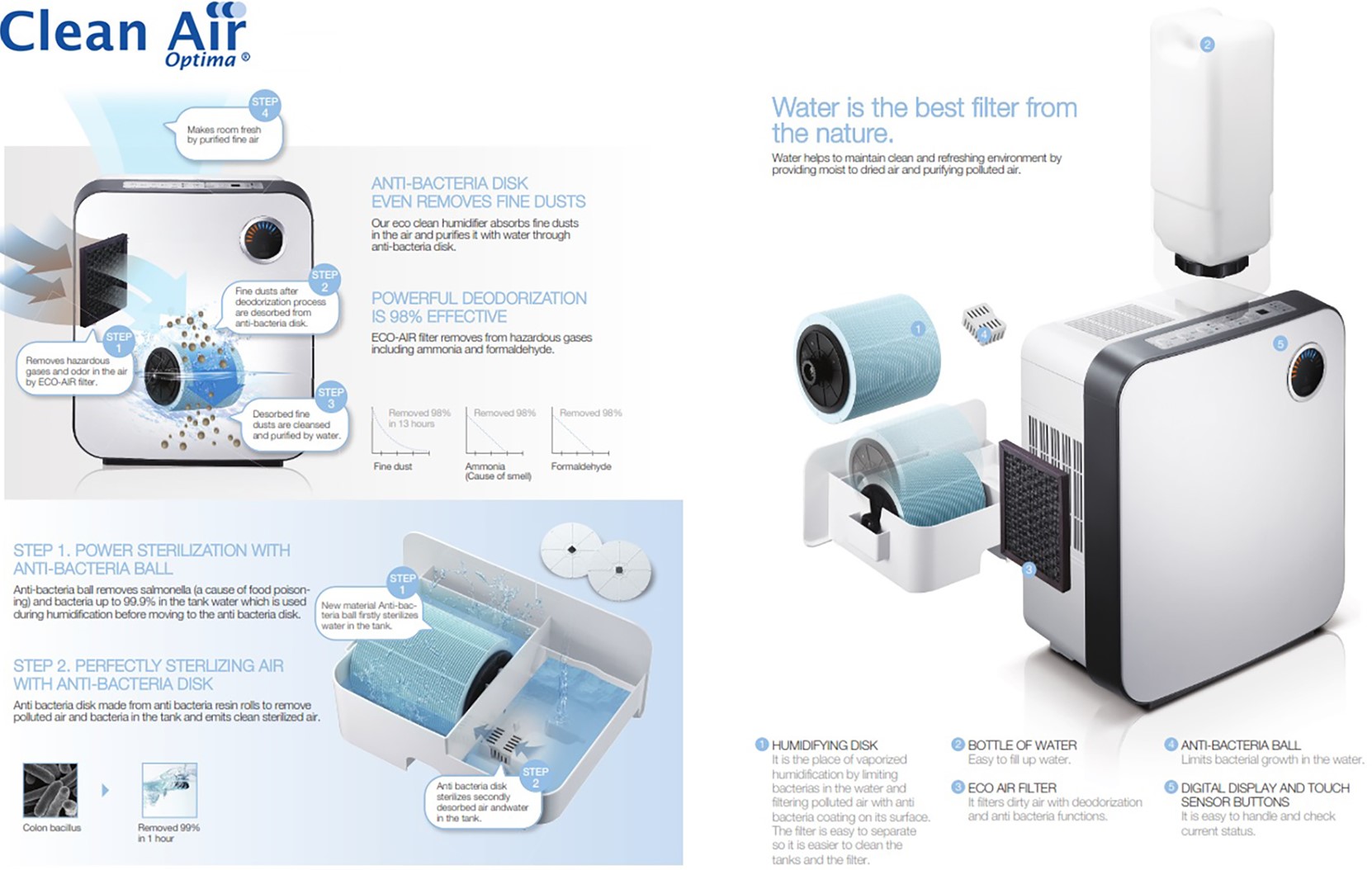

The CA-807 air washer operates without filter pads. The contaminated and dry indoor air drawn in by the fan is first passed through the activated carbon pre-filter and then across the rotor with humidifying discs rotating in the water basin. The humidifying discs have a honeycomb structure for intensive humidification. The pre-filtered air is washed and purified directly in a natural way, comparable to a shower of rain or a waterfall.
The smallest particles down to 10 micrometres are bound and separated in the water. This humidifies the air and frees it from dust, pollen and particle-bound odours that can no longer be discharged into the indoor air. The airflow from the fan, which is adjustable with three settings, carries the moist and clean air into the interior via the top of the unit.

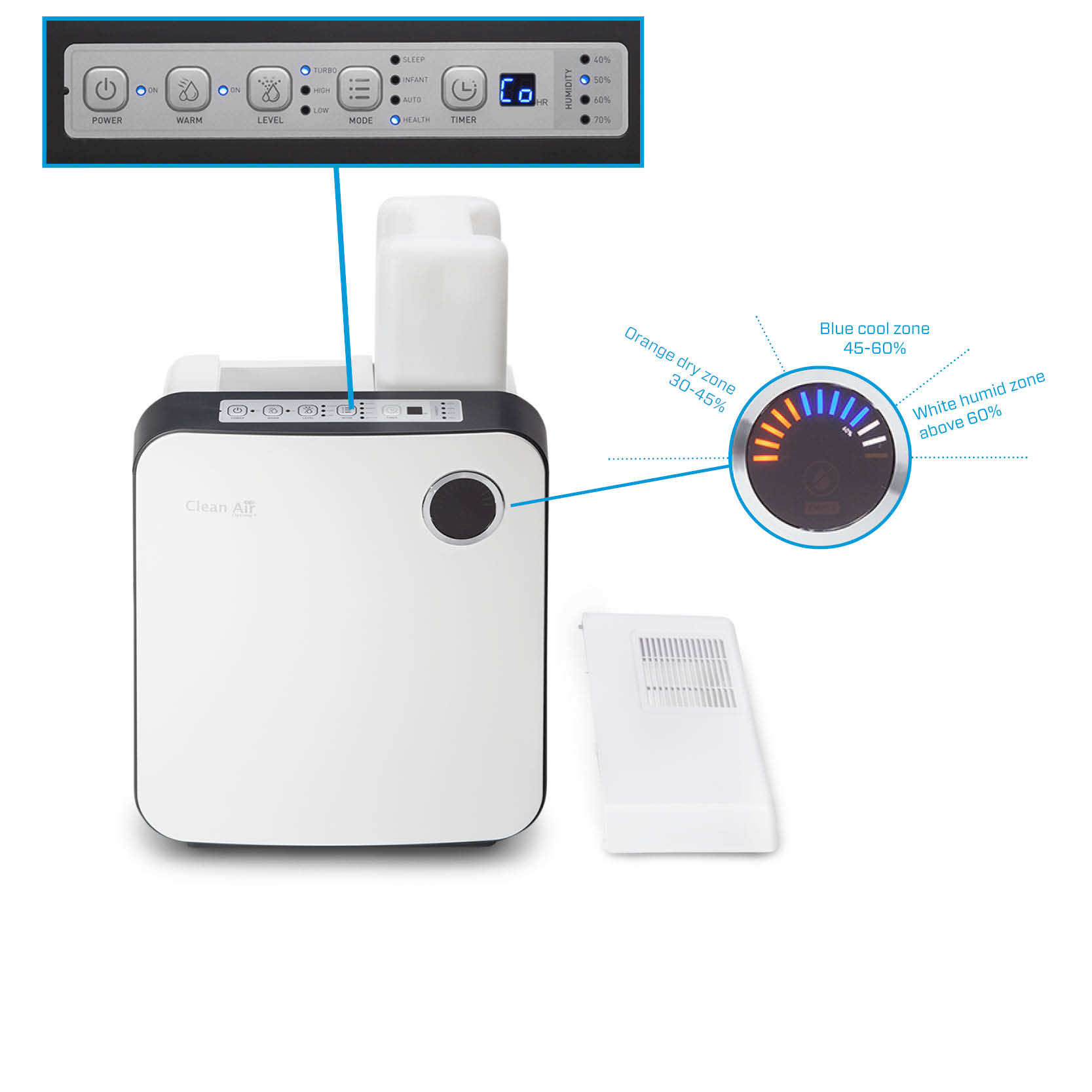

Simple operation with a digital display
and a circular humidity display

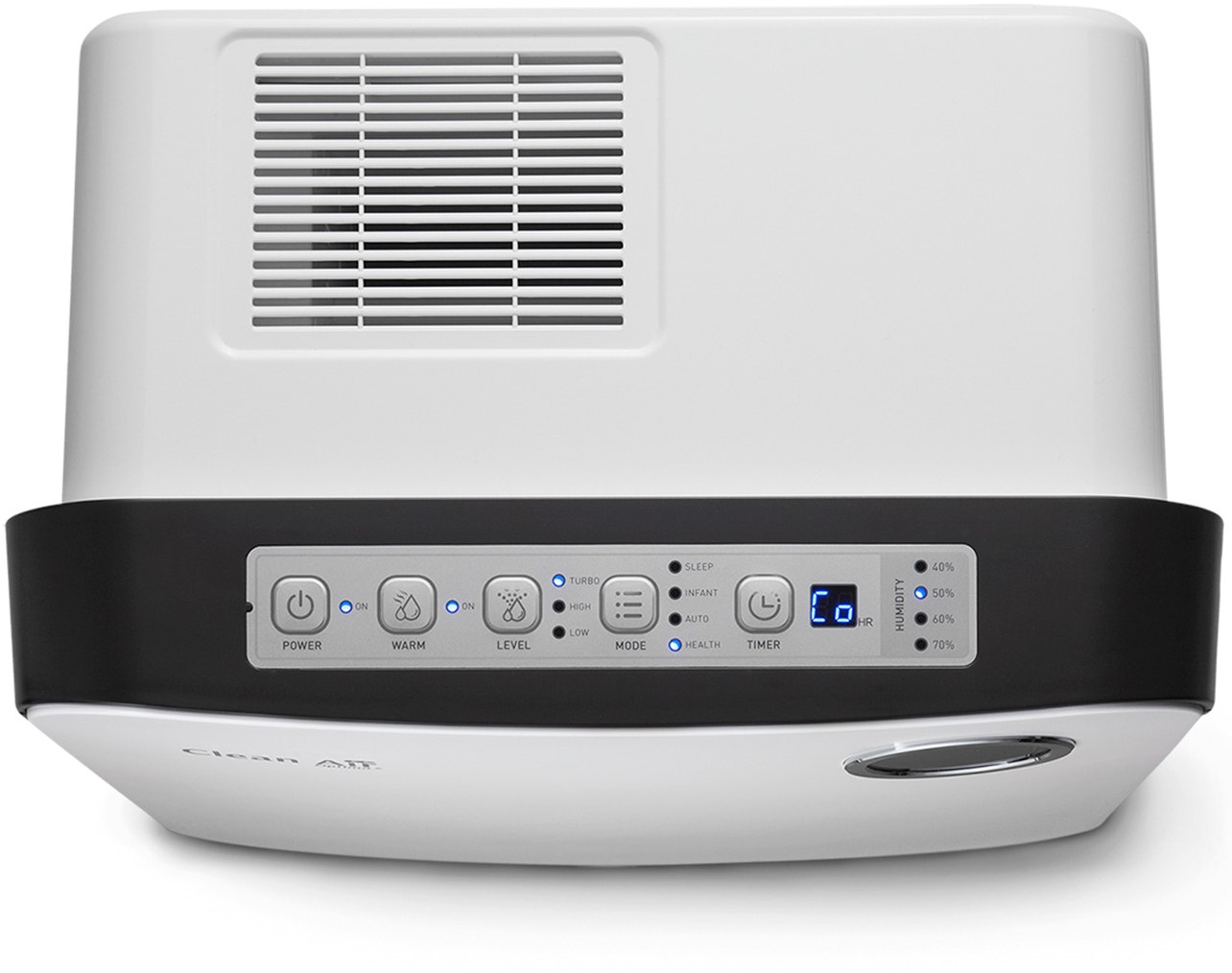

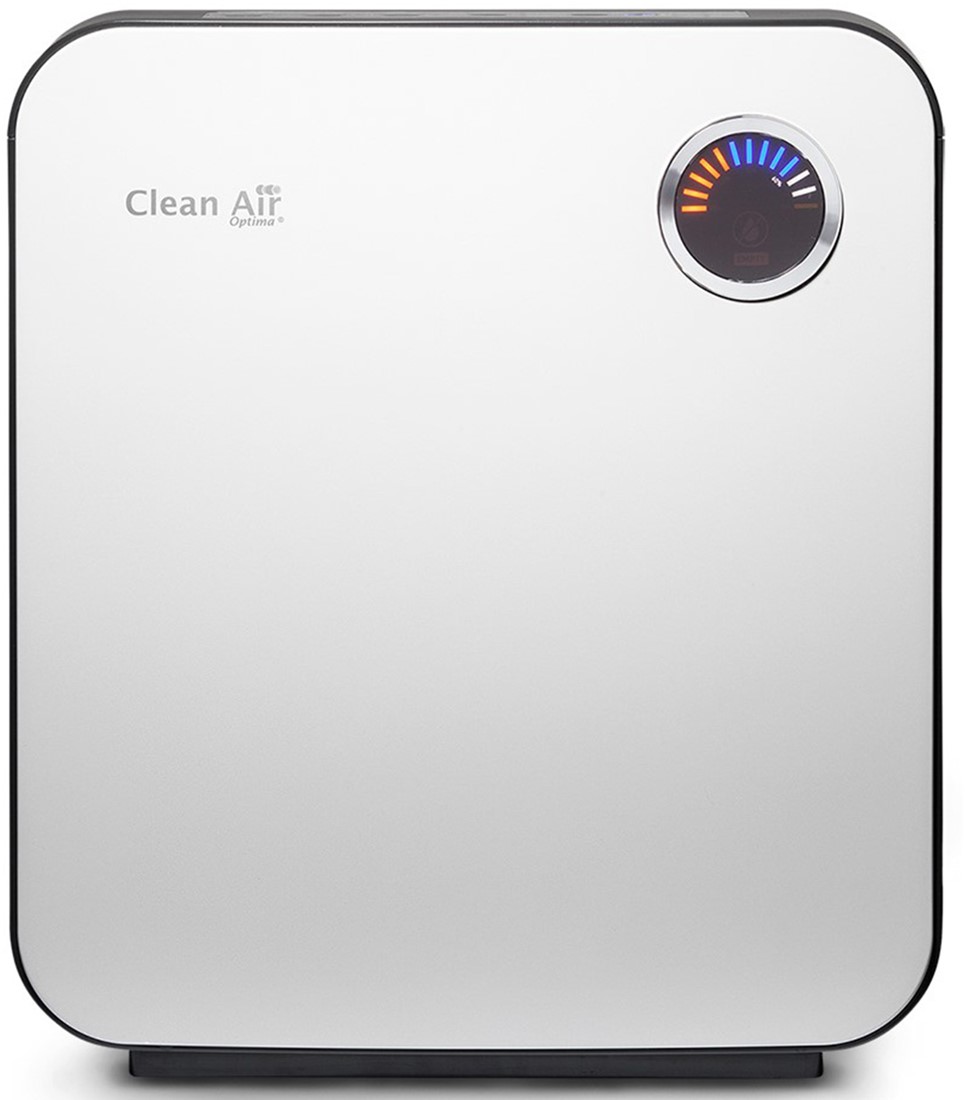

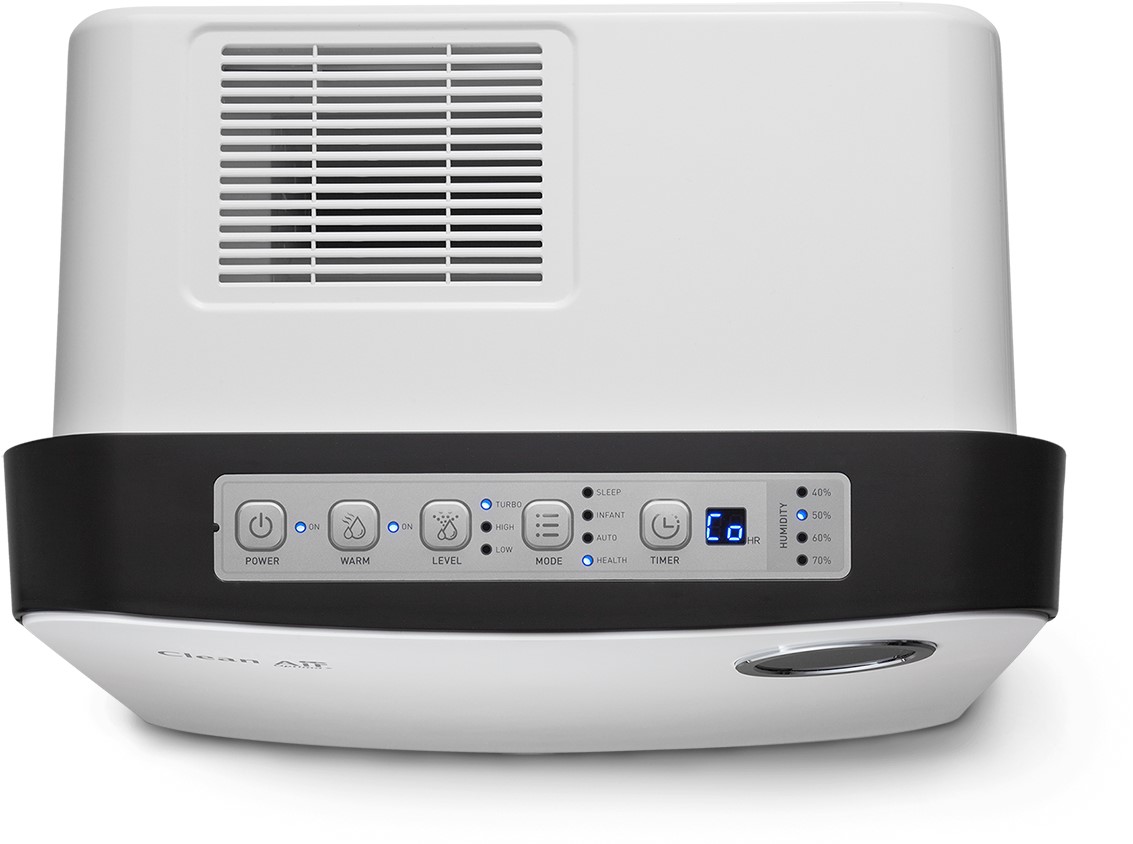

The large digital control panel at the top of the CA-807 air washer system provides clear information on the various setting options. The clearly legible circular display on the front face shows the humidity measured by the built-in humidistat in three zones.
CA-807 air washer setting options:
• “Warm” rapid humidifying or natural humidification
• “Level” for gentle, strong or turbo fan airflow
• Timer function for switch-off time (1-8 hours)
Programme settings:
• Auto mode
• Health mode
• Baby mode
• Sleep mode

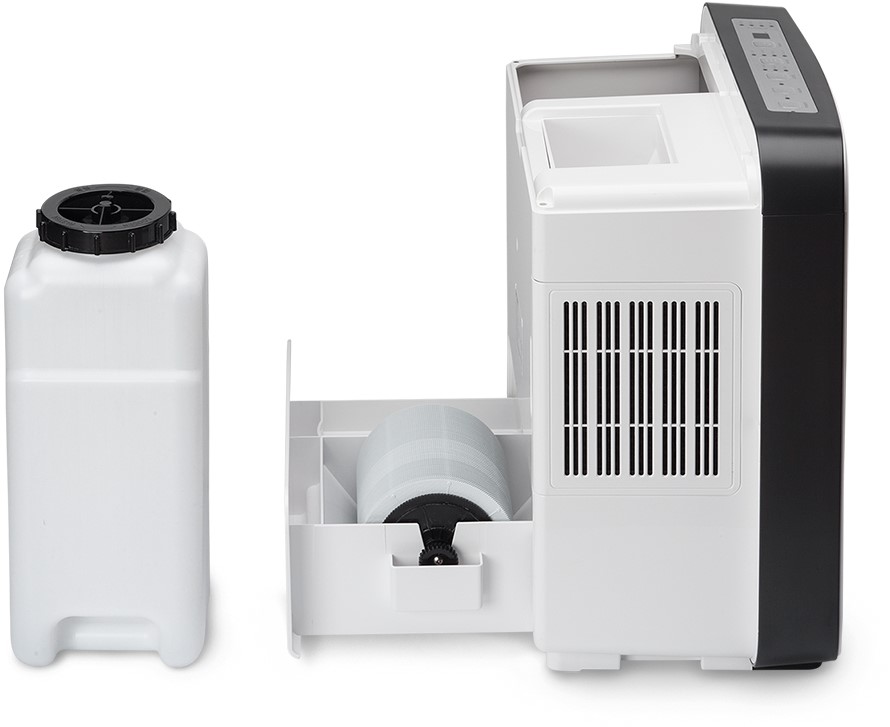

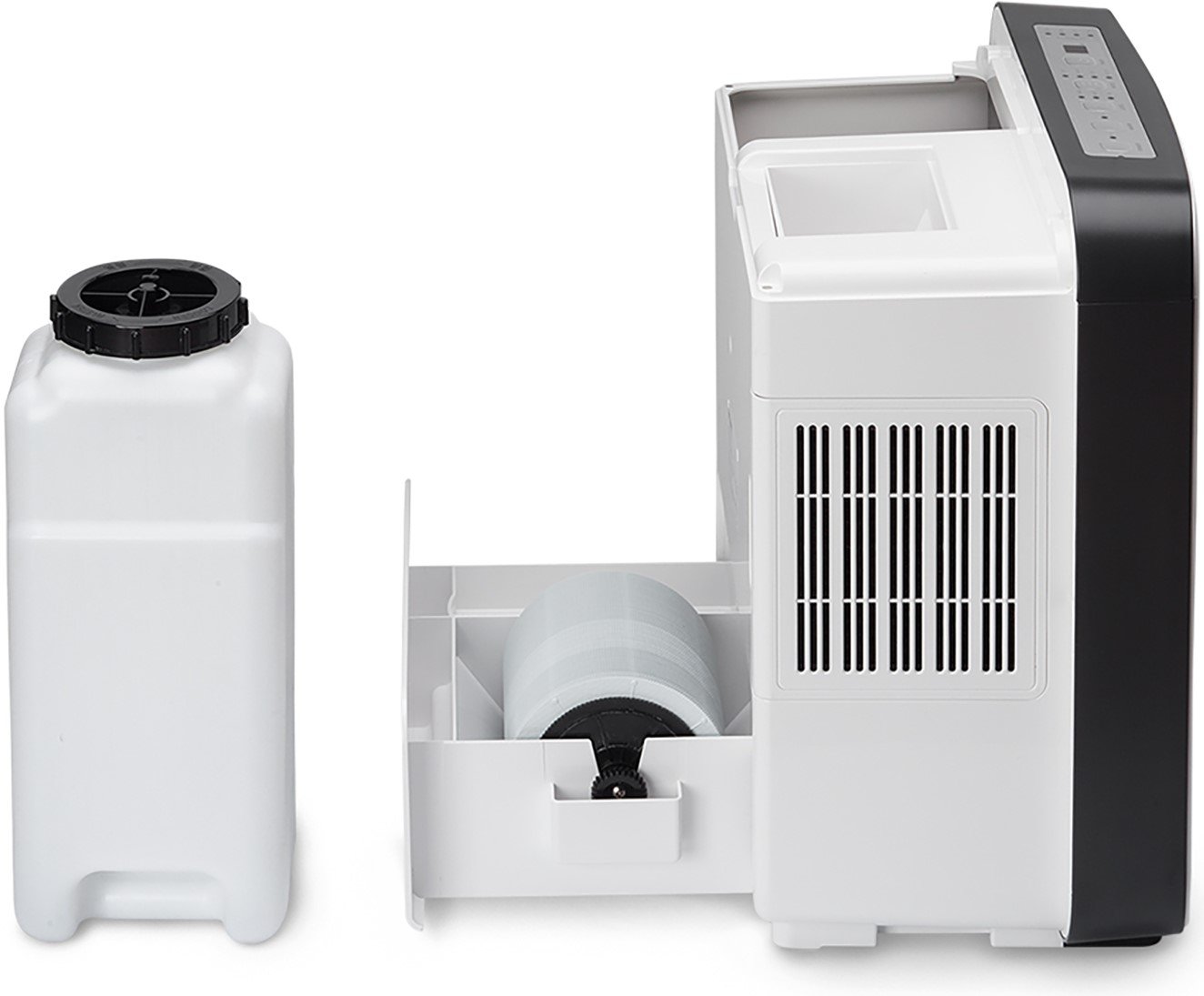

For easy filling, the water tank can be easily and quickly removed from the top of the air washer to be filled with water from the tap.
Thanks to its large 5-litre water tank, the CA-807 air washer is able to operate for about 20 hours without refilling!
Usage and maintenance
Cleaning the water tank and water basin
Every two weeks, remove residual water from the water tank and water basin. The humidification discs can be easily cleaned regularly (every four weeks) in the dishwasher. The disc package is dishwasher safe up to 40°C.
Cleaning the water tank
Shake the water-filled tank 4-5 times with the lid closed. Clean inner walls of the emptied water tank with a cloth. Do not use chemicals.
Clean the water basin and rotor with Clean Air Optima® Cleaner & Descaler
The procedure for this cleaning:
1. Dispense 2 - 4 caps Clean Air Optima® Cleaner & Descaler in the water basin of the air washer.
2. Add water to the edge of the water basin.
3. Leave on for a minimum of 30 minutes and a maximum of 60 minutes.
4. After cleaning and descaling, rinse the water basin thoroughly with water.
5. If traces of limescale are still visible, we recommend repeating cleaning and descaling.
The humidification discs can be easily cleaned regularly (every four weeks) in the dishwasher. The disc package is to 40°C dishwasher safe.
Please note
To clean and descale, the unit should be turned off so that the atomization does not release acid into the air via aerosols.
Clean Air Optima® Cleaner & Descaler is not suitable for the water tank (water tank). We recommend for the water reservoir (water tank), to use a mild detergent.
Filter maintenance
Cleaning Eco-Air plus / Activated carbon - pre-filter

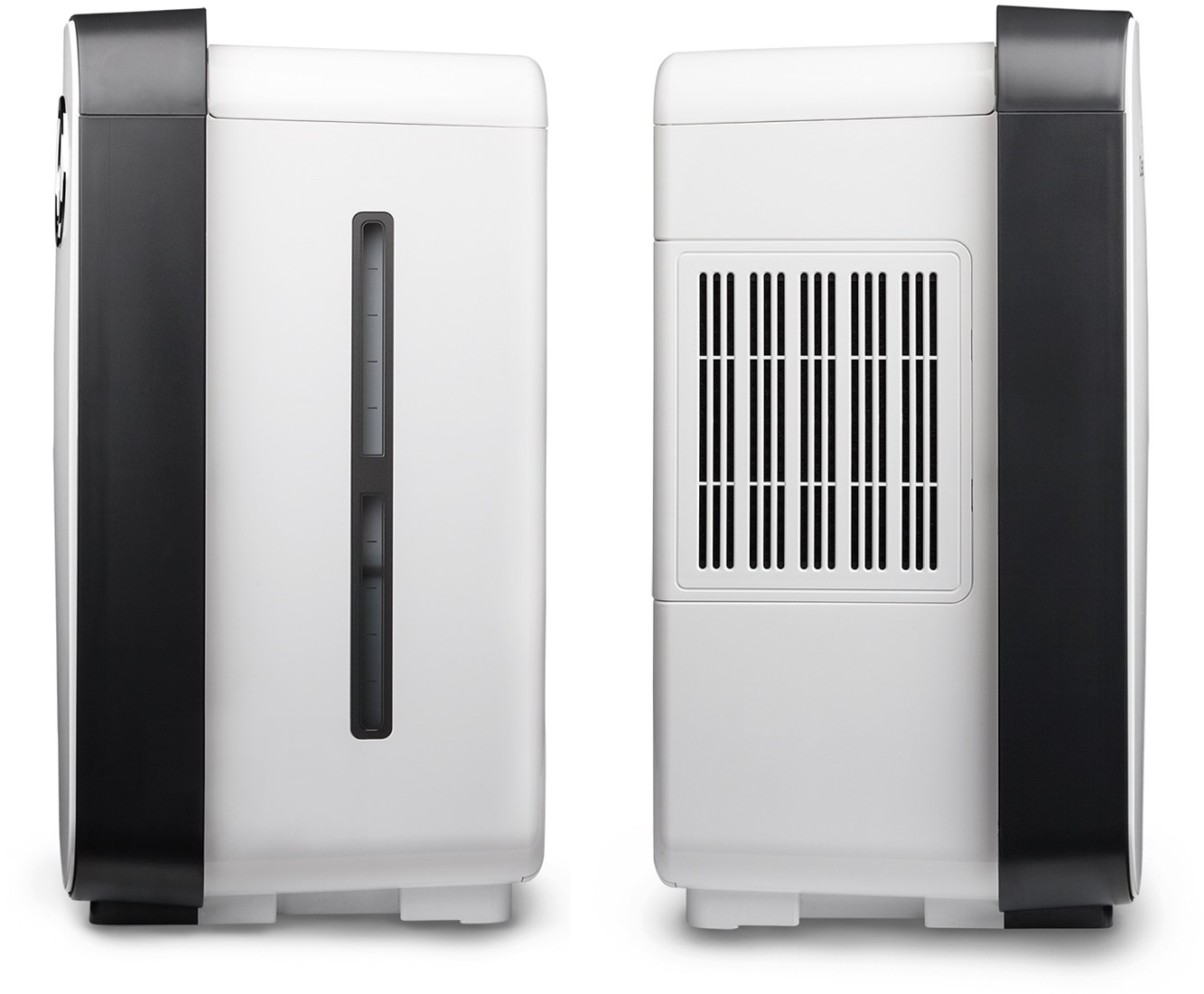

The contaminated indoor air is led into the unit from the side through the combined activated carbon and pre-filter. The pre-filter captures larger dust particles such as hair, lint, dander and other pollutants. The active carbon in the pre-filter frees the air drawn in from gases, chemicals, cigarette smoke, volatile organic compounds (VOC) and odors such as pet, mold, kitchen and paint odors.
The combined active carbon and pre-filter is located in the lid on the side of the unit and can be easily taken out manually. In continuous operation (24 hours / day) and under normal conditions, we recommend cleaning this filter twice a week by (gentle) vacuuming or brushing.
Nano - silver water filter
The Clean Air Optima® air washer CA-807 features an antibacterial water filter. This filter consists of a cylinder filled with plastic balls. These plastic pellets are nanosilver coated to prevent the growth of bacteria and odor form. This filter is located in the water basin and can be easily cleaned by rinsing with tap water.
Filter replacement
Depending on the type of use, the active carbon and pre-filter (Eco-Air Plus Filter) has a service life of about 6 months and the nano - silver water filter about 12 months.
