Risks due to dry and poor air quality in indoor spaces
Especially during cold seasons, relative humidity often falls below a relative humidity of around 45 - 55% recommended by the medical profession for living and working spaces. Humidity in homes, offices and buildings is often too low during the summer because of cooling by air conditioning systems.
Dry air has a negative effect on human and animal well-being and can cause respiratory illness and skin complaints during prolonged periods of very dry indoor air. Drying out can also be very harmful for furniture, parquet floors, antiques and plants.
Highly effective humidification achieved by the CA-803 air washer serves to prevent dry heating air and acts preventively against:
• Itchy eyes, irritated respiratory tract and dry skin
• Colds and tickling coughs due to parched mucous membranes
• Dry throat and nasal congestion
• Dry skin and chapped lips
• Cracks in wooden furniture, parquet floors and musical instruments
At the same time, using powerful air purification, the CA-803 air washer frees indoor air from:
• Old tobacco smoke
• Odours
• House dust, animal hair and pollen

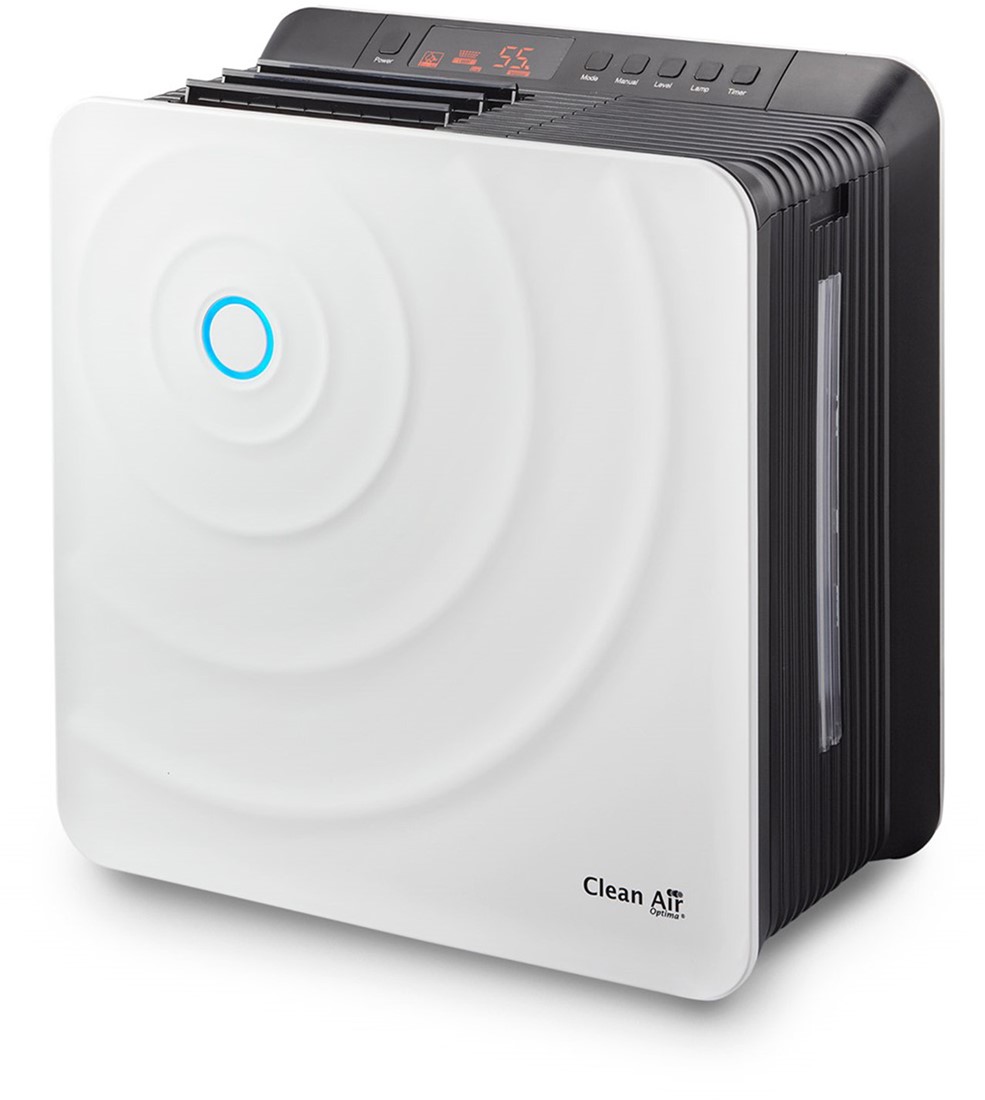

Air Washer CA-803
2in1: Humidifier and Air purifier
Suitable for rooms up to 35m² / 90m³ / 375ft²
Unique air washer system for optimum indoor climate
The Clean Air Optima® CA-803 air washer system offers simultaneous effective humidification and air purifying in your indoor space. The combination of four proven technologies, cold evaporation for humidification, air washing for purifying air, antibacterial water filter and activated carbon pre-filter, bring about a fresh and healthy indoor climate.
The CA-803 air washer is equipped with a humidistat which controls humidification automatically and has settings for day operation, whisper quiet (night) operation with dimming displays in the sleep mode. Its particularly quiet operation makes this unique system suitable for use in the bedroom or children's room as well as in offices, treatment rooms and all other areas where equipment is required to operate quietly.
Air washing provides powerful humidification
and effective air purification
The CA-803 air washer evaporates the water by means of a rotor with humidifying discs: this rotor rotates slowly like a wheel through the water basin at the bottom. When the part of the discs that has passed through the water surfaces again, the airflow from the fan is blown over it, causing the water in the humidifying discs to evaporate. Dust, pollen and other odour-generating and polluting particles remain trapped in the humidifying discs and when this part of discs rotates through the water again, the pollutants are discharged to the water and sink to the bottom of the removable and easy-to-clean water basin. Consequently, the absorbed pollutants can no longer be emitted into the indoor air.
Clean Air Optima® air washer CA-803
hybrid system operating procedure
The CA-803 air washer operates without filter pads. The contaminated and dry indoor air drawn in by the fan is first passed through the activated carbon pre-filter and then across the rotor with humidifying discs rotating in the water basin. The humidifying discs have a honeycomb structure for intensive humidification. The pre-filtered air is washed and purified directly in a natural way, comparable to a shower of rain or a waterfall.
The smallest particles down to 10 micrometres are bound and separated in the water. This humidifies the air and frees it from dust, pollen and particle-bound odours that can no longer be discharged into the indoor air. The airflow from the fan, which is adjustable with three settings, carries the moist and clean air into the interior via the top of the unit.

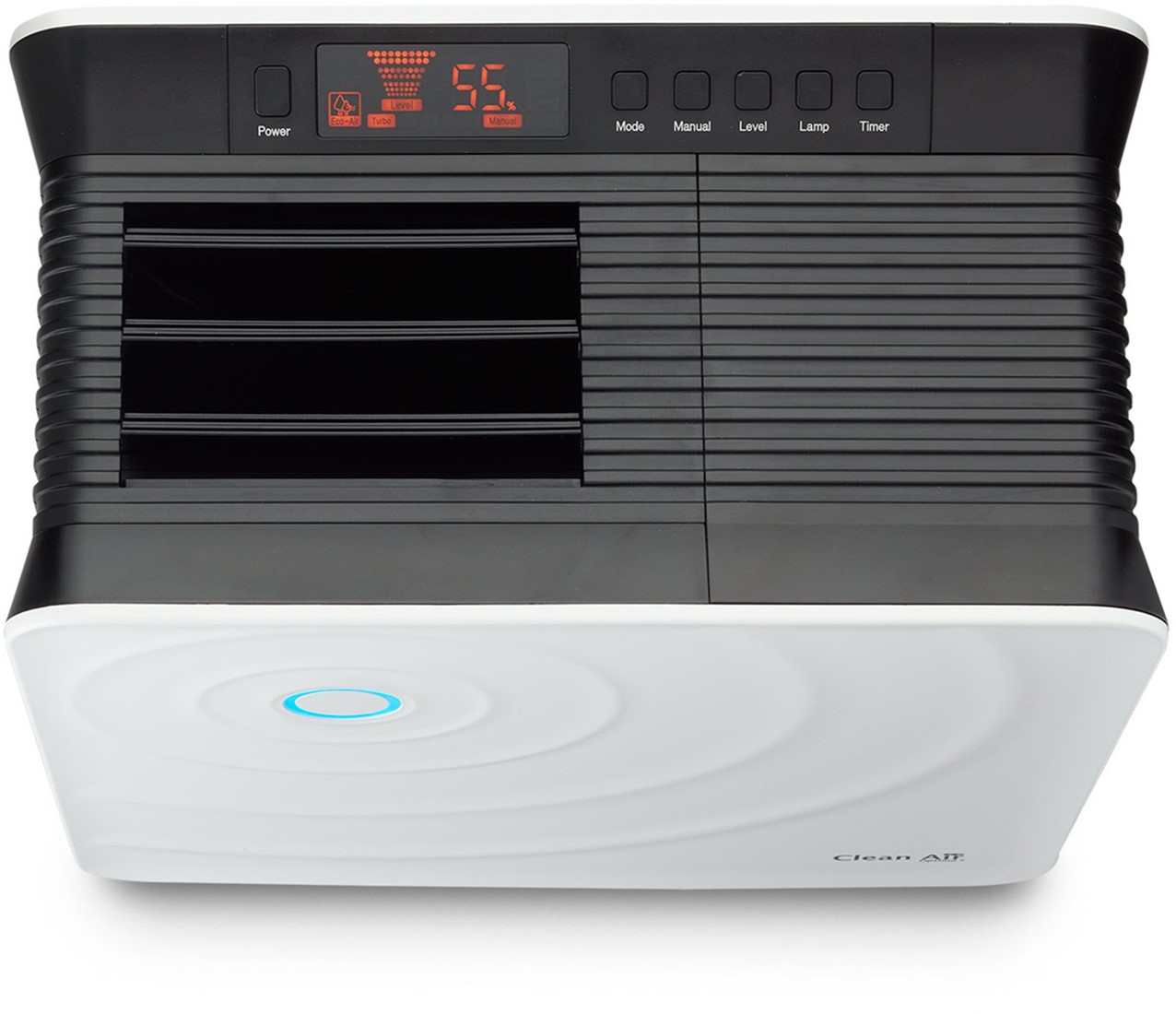

Simple operation with digital display and humidity display
The large digital control panel at the top of the CA-803 air washer system provides clear information on the various setting options, and the built-in humidistat shows the humidity in the display.
CA-803 air washer setting options:
• Humidity adjustable between 40-75%
• High-Medium-Low humidification rate
• Timer function for switch-off time (1-8 hours)
• Circular display lighting (switchable on/off)
Programme settings:
• Auto mode
• Health mode
• Baby mode
• Sleep mode
For easy filling, the water tank can be easily and quickly removed from the top of the air washer to be filled with water from the tap.
Thanks to its large 4-litre water tank, the CA-803 air washer is able to operate for about 18 hours without refilling!
Usage and maintenance
Cleaning the water tank and water basin
Every two weeks, remove residual water from the water tank and water basin. The humidification discs can be easily cleaned regularly (every four weeks) in the dishwasher. The disc package is dishwasher safe up to 40°C.
Cleaning the water tank
Shake the tank filled with water 4-5 times with the cover closed. Clean the inside walls of the empty water tank with a cloth. Do not use chemicals.
Clean the water basin and rotor with Clean Air Optima® Cleaner & Descaler
Method for this cleaning process:
1. Dispense 2 - 4 capfuls of Clean Air Optima® Cleaner & Descaler into the air washer water basin.
2. Add water to the edge of the water basin.
3. Leave on for a minimum of 30 minutes and a maximum of 60 minutes.
4. After cleaning and descaling, rinse the water basin thoroughly with water.
5. If there are still traces of limescale visible, we recommend that you repeat the cleaning and descaling process.
The humidifying discs can be cleaned regularly (every four weeks) easily in a dishwasher. The disc pack is dishwasher safe up to 40°C.
NB
To clean and descale the unit, it needs to be switched off such that the atomisation does not release acid into the air via aerosols.
Clean Air Optima® Cleaner & Descaler is not suitable for the water tank. We recommend using mild washing-up liquid for the water tank.
Filter maintenance
Cleaning the Eco-Air Plus / activated carbon - pre-filter
Contaminated indoor air is fed into the unit on the side through the combined activated carbon and pre-filter. The pre-filter captures larger particles such as hair, lint, dander and other pollutants. The active carbon in the pre-filter removes gases, chemicals, cigarette smoke, volatile organic compounds (VOC) and odours such as pet, mould, kitchen and paint odours from the intake air.
The combined activated carbon and pre-filter is fitted in the cover on the side of the unit and can be easily removed by hand. In continuous operation (24 hours a day) and under normal conditions, we recommend cleaning this filter twice a week by (gentle) vacuuming or brushing.

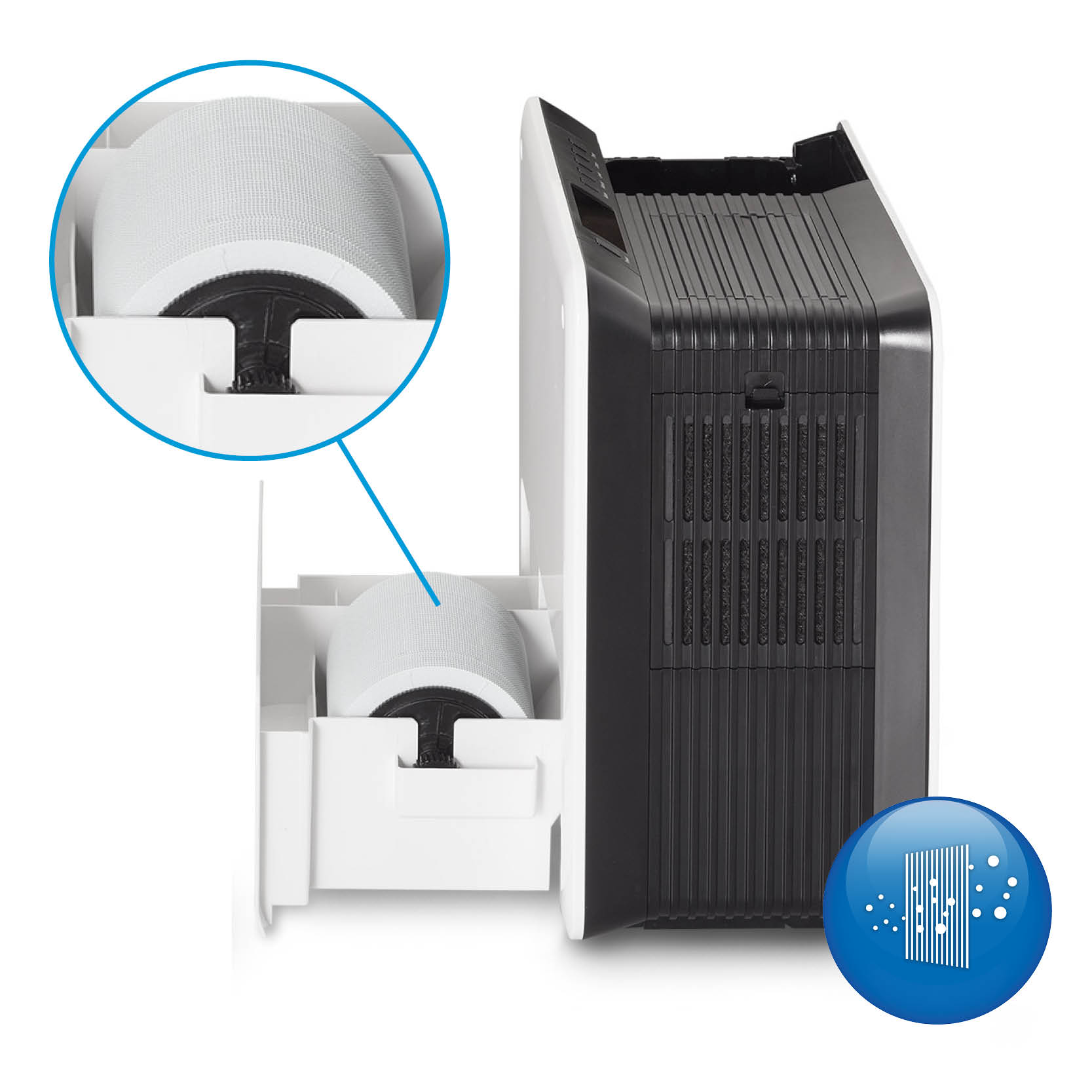

Cleaning the nanosilver water filter
The Clean Air Optima® air washer CA-803 features an antibacterial water filter. This filter consists of a cylinder filled with plastic beads. These plastic beads are nanosilver-coated to prevent bacterial growth and odour forming. This filter is fitted in the water basin and can be easily cleaned by rinsing with tap water.
Filter replacement
Depending on the type of use, the Eco-Air plus filter has a service life of approx. 6 months and the Nano - Silver water filter approx. 12 months.
